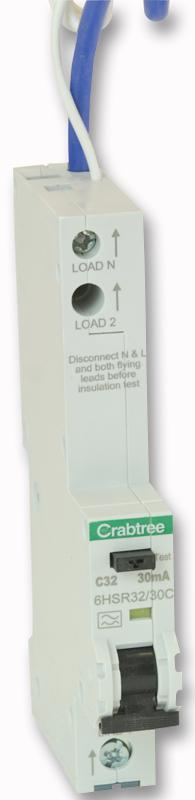

Crabtree Loadstar 32A 30mA Single Pole Type C RCBO, 10kA
Single pole RCBO with 32A, Type C protection, 30mA sensitivity & 10kA breaking capacity. BS EN 61009 compliant.
The Crabtree Loadstar 32A 30mA Single Pole Type C RCBO provides reliable circuit protection, combining an MCB (Miniature Circuit Breaker) and RCD (Residual Current Device) in a single unit. This 18mm wide device is designed for 230V AC 50/60Hz circuits, ensuring compliance with BS EN 61009 standards.
Featuring Type C trip curve protection, it delivers optimal performance for circuits with moderate inrush currents, such as those powering motors or lighting systems. The 30mA sensitivity ensures protection against earth leakage faults, enhancing electrical safety in domestic and commercial applications.
Key Features:
- Unswitched neutral for simplified installation
- 10kA breaking capacity for robust protection against short circuits
- Compact design (18mm wide) saves space in consumer units
- 1 Pole (single phase) operation for standard 230V circuits
Ideal for upgrading existing circuits or new installations where combining overload and earth fault protection in a single device is preferred.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Domestic consumer units
- Commercial electrical installations
- Circuits with moderate inrush currents (Type C)
- Spur protection for lighting or motor circuits
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Voltage Rating: 230V AC
- Current Rating: 32A
- Sensitivity: 30mA
- Breaking Capacity: 10kA
- Trip Curve: Type C
- Poles: 1 (Single Pole)
- Neutral Connection: Unswitched
- Standards Compliance: BS EN 61009
- Width: 18mm
- Weight: 280g
Always follow local regulations and product guidance.
