CYP 4K PoH/PoE HDBaseT Power Injector

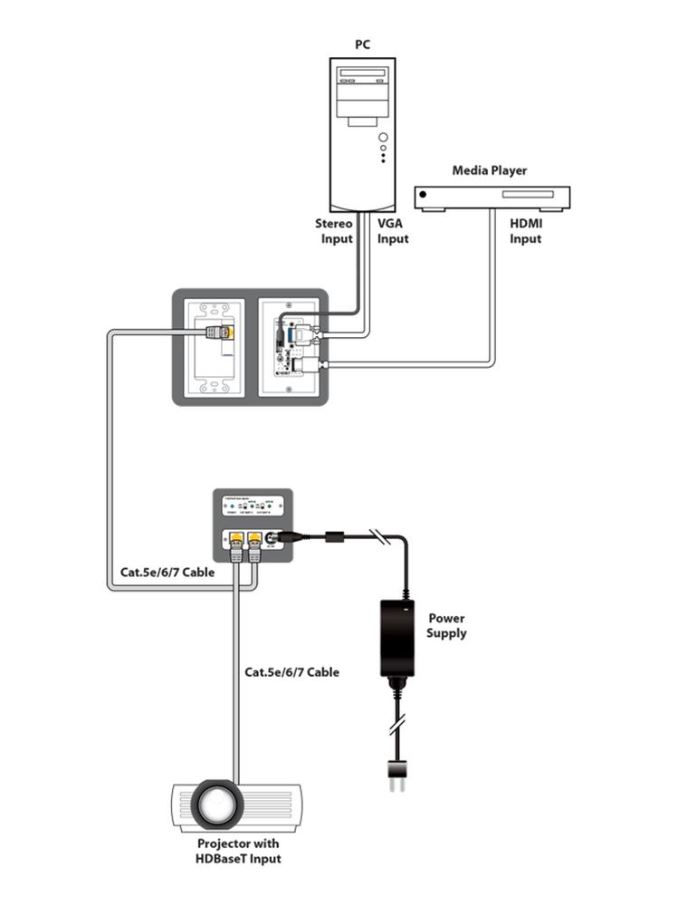

The CYP 4K PoH/PoE HDBaseT Power Injector is a compact power injector that delivers remote power to HDBaseT-compatible devices within AV installations. Placed between two HDBaseT products, it provides PoE (Power over Ethernet) or PoH (Power over HDBaseT) in either direction, offering flexibility across a range of setup configurations.

Key Features

• Supports 4K/UHD signal transmission
• HDBaseT bandwidth up to 10.2 Gbps
• HDCP 1.x and 2.2 compliant

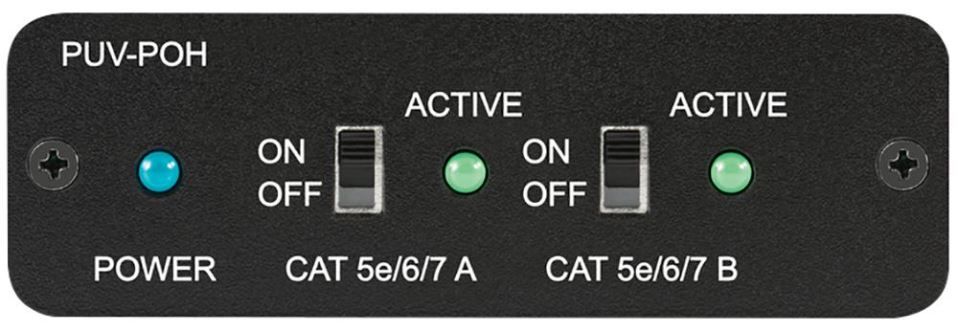

• Dual power switches on the side for independent upstream and downstream control
• Low-profile, discreet enclosure for hidden or space-constrained installations
• Works with PoE and PoH power delivery

Overview

The injector supports the full HDBaseT specification with bandwidth up to 10.2 Gbps, enabling high-performance data transfer for 4K/UHD signals while maintaining HDCP 1.x and 2.2 compliance. The dual power switches allow power delivery to upstream and downstream connected HDBaseT devices to be controlled independently. Its compact design ensures minimal disruption during installation while providing reliable power injection for professional and consumer-grade AV setups.

Specifications

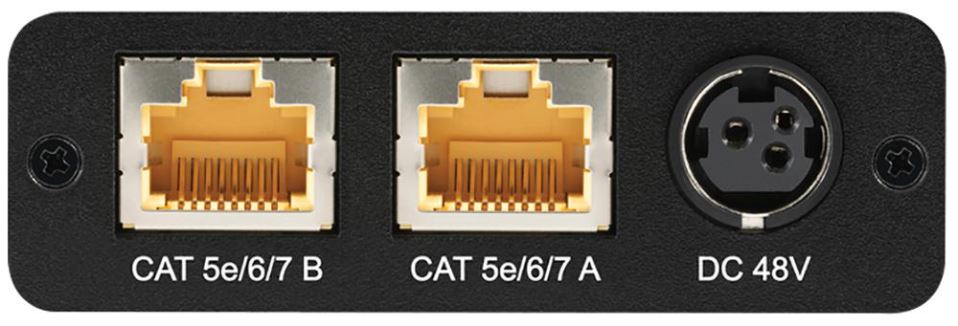

• Input: 1x RJ45 (HDBaseT PoH HDMI & Proprietary Data)
• Output: 1x RJ45 (HDBaseT PoH HDMI & Proprietary Data)
• Power Supply: 48V DC, 0.83A
• Dimensions (HxWxD): 23 x 71 x 72 mm
• Weight: 130 g

Applications

Suited to professional AV installations, hobby and education setups, low-voltage systems, signal processing environments, and business and consumer electronics. Choose the CYP 4K PoH/PoE HDBaseT Power Injector when you need remote power delivery alongside 4K/UHD HDBaseT signal transmission in a discreet, compact unit.
