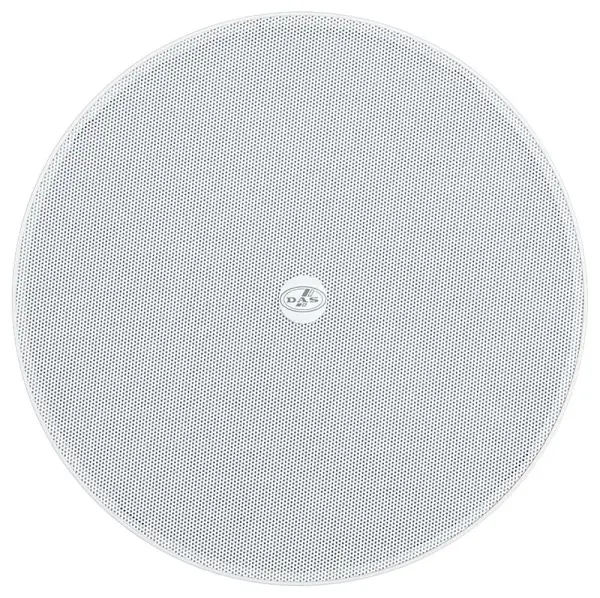

DAS DECO-6TB Ceiling Mount Loudspeaker with Back Can, 15W, 100V

The DAS DECO-6TB is a wide-range passive two-way ceiling-mounted acoustic system, designed to deliver high-quality sound while blending discreetly into any environment. Featuring a 6.25” low-frequency cone loudspeaker and a 1” ferrofluid-cooled soft dome tweeter with an integrated diffraction ring, this speaker provides a clear, detailed audio experience across a frequency range of 60Hz to 20kHz.

Its frameless grille design extends just 3 mm from the ceiling, making it practically invisible once installed. The high pressure injected thermoplastic back cover ensures durability and longevity, suitable for various commercial and residential applications. Equipped with a 15W 100V in-line transformer with a multi-pass selector accessible from the front, the speaker supports both high and low impedance, with transformer taps for 70V and 100V systems.

The easy mounting system with built-in tabs simplifies installation, and the cut out diameter of 250mm ensures a standard fit. With an 8-ohm nominal impedance, 95° conical coverage, and a maximum peak SPL of 112dB, this speaker performs exceptionally well in open spaces. Its RMS power handling is 40W with a peak of 160W, making it a reliable choice for foreground and background music systems.

Specifications

• Frequency Range: 60Hz to 20kHz
• Power Handling: 40W RMS, 160W Peak
• Transformer Taps: 70V (2.5W, 5W, 7.5W, Low Z) and 100V (5W, 10W, 15W, Low Z)
• Nominal Impedance: 8 Ohms
• Coverage Angle: 95° (conical)
• Sensitivity: 90dB SPL (1W/1m)
• Maximum Peak SPL: 112dB at 1m
• Connectors: Spring terminals
• Cut Out Diameter: 250mm
• Dimensions (H x W x D): 275mm x 275mm x 185mm
• Weight: 1.9kg (single unit)

Supplied in single units, this DAS loudspeaker is a professional audio solution for ceiling-mounted installations.
