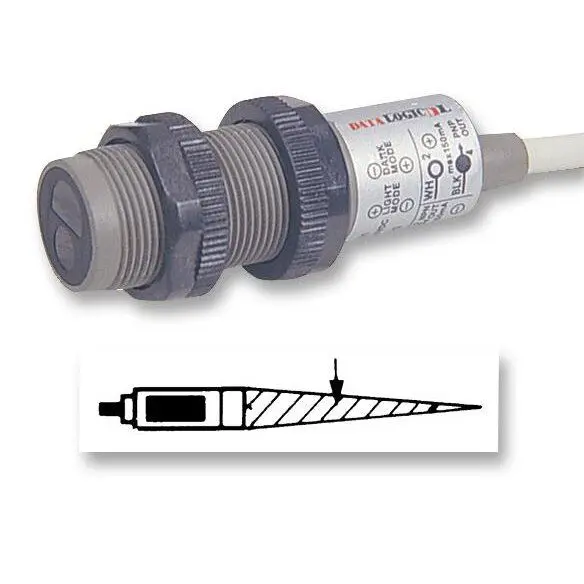

DATASENSOR S5 Pol Reflex Photoswitch, NPN/PNP, 3m Range
- SKU
- C3-SN36684
- EAN
- 3562114192653
Industrial DATASENSOR polarised retroreflective photoswitch with 3m range, NPN/PNP outputs, IP67 housing. Ideal for automation sensing.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Free UK deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- 30-day returnsUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- Sensing applications in industrial automation
- Instrumentation and control systems
- Object detection on production lines
- Position sensing in machinery
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Housing Material: Rugged ABS
- Protection Rating: IP67
- Light Source: Infrared LED (880nm) or Red LED (650nm)
- Output Type: Configurable NPN / PNP
- Operating Mode: Dark or Light selectable
- Connection: 4-wire VDC, 2m cable (Ø 5mm)
- Sensing Method: Polarised Retroreflective
- Sensing Range Max: 3 m (3000 mm)
- Supply Voltage: 10-30 V DC
- Operating Temperature Range: -15°C to +55°C
- Dimensions (H x W x D): 43 mm x 33 mm x 15 mm
- Weight: 140 grams
- Compliance: EN60947-5-2
- Series: S5 Series
- Special Feature: Status LED (red)
- Special Feature: Trimmer adjustment with stability LED (green) on select models
- Sensing Distance Max: 3000mm
- Sensor Output Type: NPN / PNP
- Product Range: S5 Series
- Supply Voltage DC Min: 10V
- Connection Method: Cable
- Supply Voltage DC Max: 30V
- Operating Temperature Min: -15°C
- Operating Temperature Max: 55°C
- SVHC: No SVHC (15-Jan-2018)
