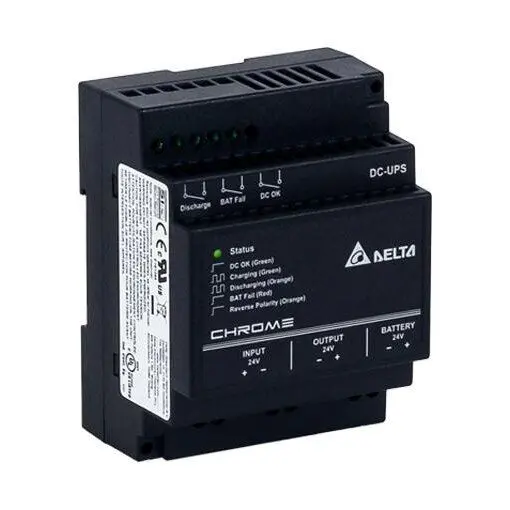

Delta Chrome DRU-24V10ACZ DC-UPS Module, 24V DC, 10A, 240W, 12Ah

The Delta Chrome DRU-24V10ACZ is a compact DC-UPS (uninterruptible power supply) module engineered for small cabinets where installation space is at a premium. Its slim profile, with a depth of only 55.6mm, a width of 71mm, and a height of 91mm, ensures it fits into tight enclosures without compromising performance.

This module supports 24VDC systems with an external battery capacity of up to 12Ah, providing reliable backup power. It features potential-free contacts for battery management signals and an LED indicator for battery status, enabling clear and immediate monitoring. The flame-retardant plastic case, certified to UL 94V-0, ensures safety and durability in demanding industrial environments.

Key Features

• High Efficiency: Convection-cooled design with >80% efficiency in charging mode and >99% in buffering mode.
• Zero Switchover: Seamless transition from DC input loss to battery operation with zero switchover time.
• Comprehensive Protection: Includes overvoltage, overload, overcurrent, over-temperature, and short-circuit protection.
• Diagnostic Monitoring: Built-in relay contacts for DC OK, discharge, and battery fail signals, plus LED indicators for DC OK, charging, discharging, battery fail, and reverse polarity.
• Industrial Compliance: Certified to IEC/UL 60950-1, IEC/EN/UL 62368-1, and UL 508, suitable for most industrial applications.
• DIN Rail Mounting: Standard TS35 DIN rail per EN 60715, IP20 rated.
• Wide Operating Range: Operates from -20°C to +60°C at full power.

Applications

Designed for building automation, machine automation, and renewable energy systems, the DRU-24V10ACZ ensures uninterrupted operation for critical 24V DC loads. Its compact size and robust feature set make it an ideal choice for space-constrained industrial cabinets.
