DFROBOT Gravity RGB Colour Sensor for Arduino TCS34725

The DFROBOT Gravity RGB Colour Sensor utilises the TCS34725 chip to provide a high-sensitivity and wide dynamic range colour sensing solution for your Arduino projects. Designed to perform reliably under varied lighting conditions, this sensor features an integrated IR blocking filter that ensures accurate colour detection by eliminating infrared light interference.

Equipped with four ultra-bright LEDs, the sensor can operate effectively without the need for external light sources, making it highly versatile for different environments and applications. It communicates via an I2C interface, ensuring straightforward integration with microcontrollers. The board is part of the DFROBOT Gravity series, known for its user-friendly connectivity and modular design.

Key Specifications

• Operating Voltage: 3.3V - 5V
• Operating Current: 65 µA
• Detection Range: 3 mm - 10 mm
• Clock Frequency: 0 - 400 kHz
• Operating Temperature: -30°C to +70°C
• Board Dimensions: 18.5 mm x 23 mm

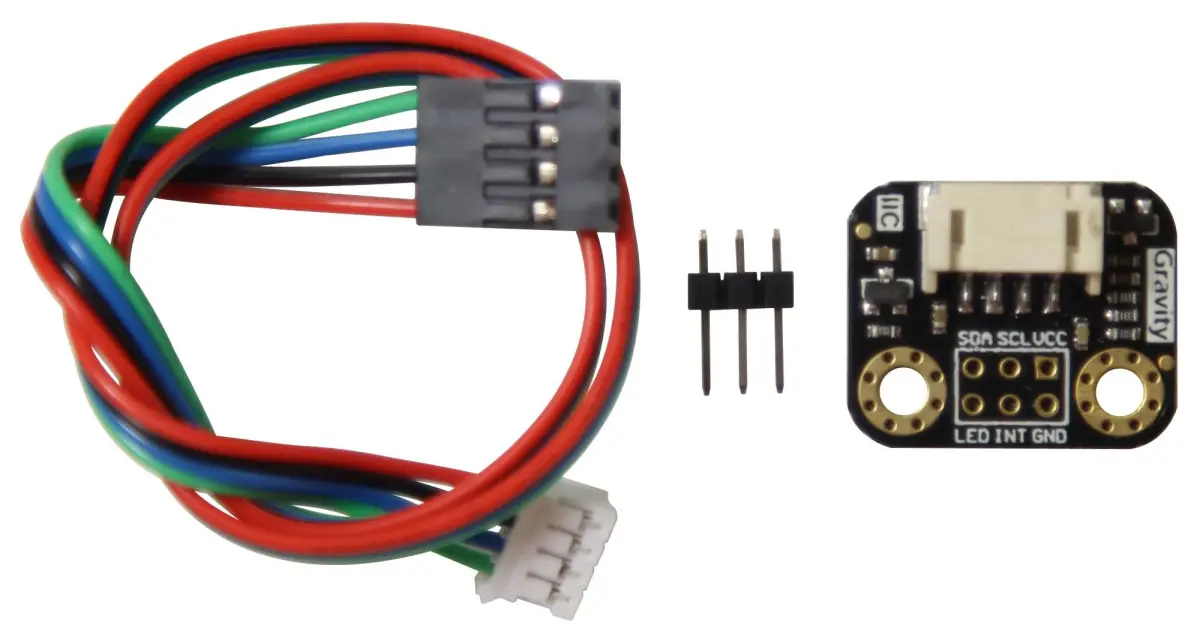

This sensor kit includes the TCS34725 I2C colour sensor board, an I2C sensor cable, and two XH2.54-3P pin headers, providing everything needed to get started with colour detection in your next build.
