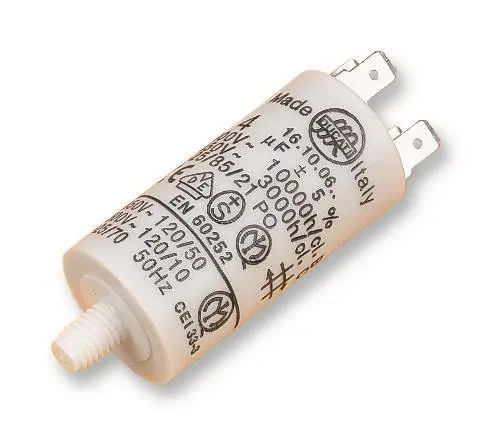

DUCATI Motor Run Film Capacitor, 6 µF, 450V, Quick Connect

The DUCATI 4.16.10 Series Motor Run Capacitor is a high-performance, reliable component designed for demanding AC motor applications. It features a metallized polypropylene film dielectric, renowned for its stability and low losses, ensuring efficient operation and extended motor life. The capacitor is housed in a robust, self-extinguishing plastic case, with the capacitive element securely sealed using polyurethane resin to eliminate any risk of leakage, providing a high class of safety protection (P0).

This capacitor incorporates a non-inductive winding technique, which minimises energy losses and enhances performance. A key benefit is its self-healing property; if a dielectric breakdown occurs, the metallised electrode vaporises around the fault, isolating it and preventing a short circuit, thereby maintaining functionality and safety. Its compact dimensions and limited weight make it easy to integrate into various motor designs and enclosures.

Key Features & Specifications

• Capacitance: 6 µF with a tight ±5% tolerance for consistent performance.
• Voltage Rating: Rated for 450VDC, suitable for robust motor run circuits.
• dv/dt Rating: High 20V/µs rating ensures reliability in circuits with rapid voltage changes.
• Mounting: Features a stud mount (M8) for secure and stable installation.
• Terminals: Quick-connect terminals allow for fast and tool-free wiring.
• Operating Range: Designed to perform reliably in a wide temperature range from -25°C to +70°C.
• Construction: Durable plastic case and cover made from self-extinguishing material for added safety.

Ideal for ensuring the smooth and efficient operation of single-phase AC induction motors, this capacitor is a dependable choice for maintenance and OEM applications where quality and durability are paramount.
