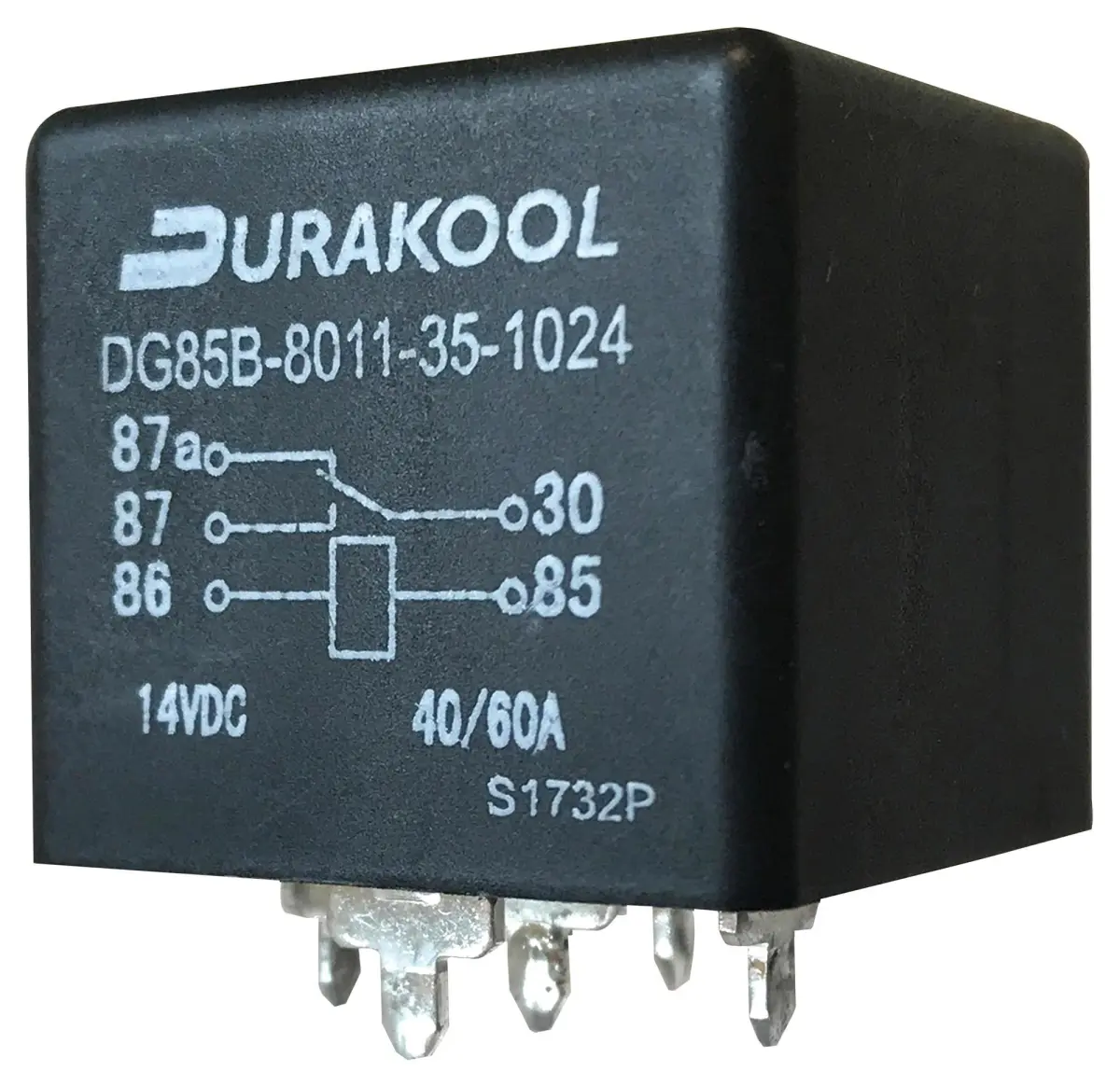

DURAKOOL Automotive Relay SPDT 12V DC 60A
DURAKOOL DG85 series automotive relay, SPDT, 12V DC, 60A. Features integral reversed diode, panel mount & quick connect terminals. -40 to 125°C.
The DURAKOOL Automotive Relay is a general-purpose relay featuring a DC coil, designed for demanding electrical applications. Belonging to the DG85 series, this relay features an SPDT (1CO) silver nickel (AgNi0.15) contact configuration with a covered protection category, ensuring reliable performance in various environments.
This relay offers high resistance to inrush current and boasts a high continuous DC current capacity, making it suitable for heavy-duty tasks. It incorporates a flat blade connection mode and an integral reversed diode for circuit protection. With a wide operating temperature range of -40°C to 125°C, it is built to withstand extreme conditions.
Ideal for automotive and motor drive control applications, this panel-mount relay provides a secure and efficient connection via its quick connect terminals. The robust design and precise engineering make it a dependable choice for your electrical systems.
Key Specifications
- Coil Voltage: 12V DC
- Contact Current: 60A
- Contact Configuration: SPDT
- Contact Voltage DC Nominal: 30V
- Coil Resistance: 90 ohm
- Contact Material: Silver Nickel (AgNi0.15)
- Mounting Type: Panel Mount
- Terminals: Quick Connect (Flat blade)
- Operating Temperature: -40°C to 125°C
- Dimensions: 43 mm x 33 mm x 15 mm
- Weight: 37 grams
