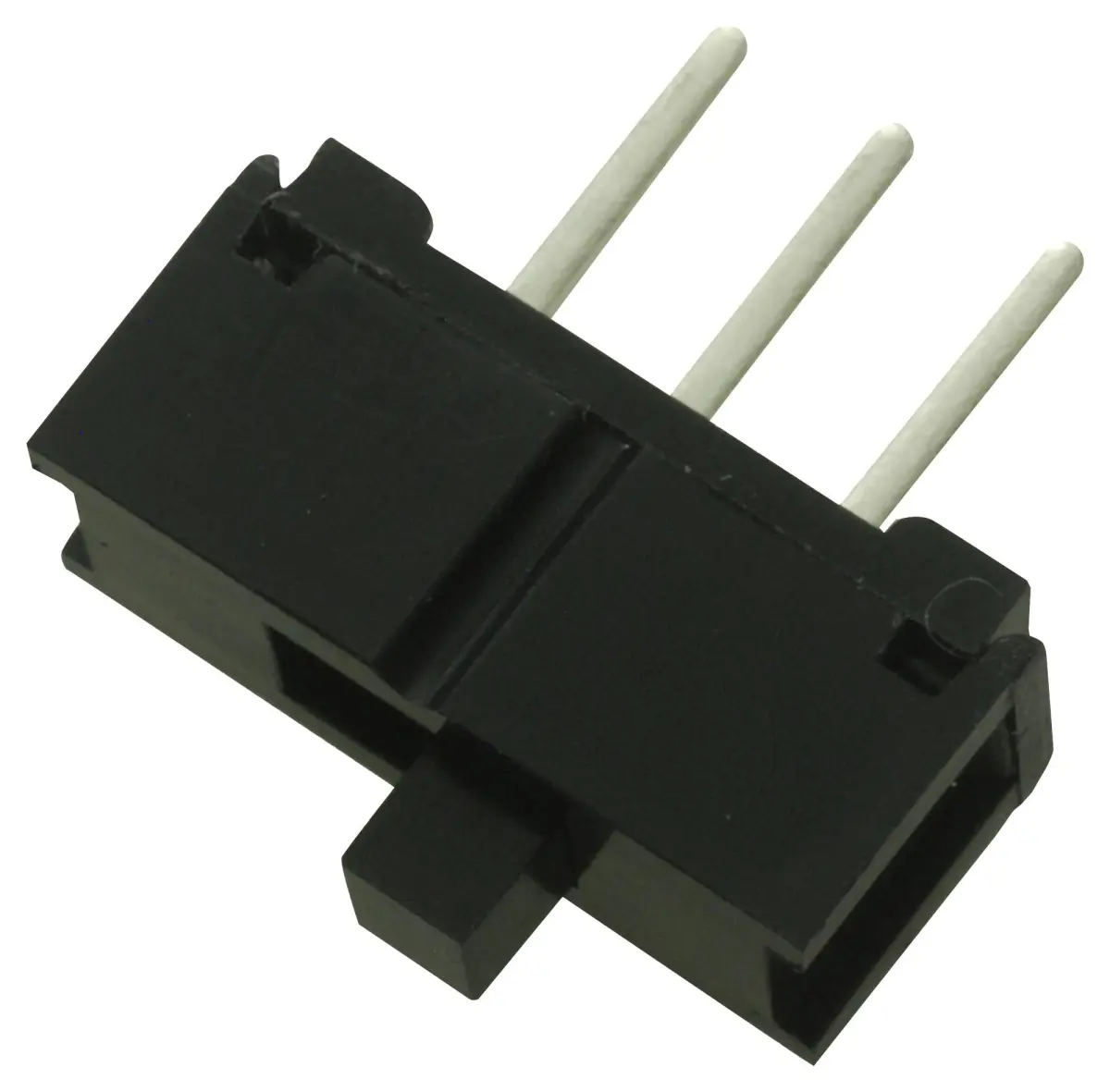

E-SWITCH EG1218 SPDT Subminiature Slide Switch, 200mA, 30V DC

The E-SWITCH EG1218 is a high-quality, single-pole double-throw (SPDT) subminiature slide switch engineered for reliability in low-power electronic circuits. Featuring silver-plated copper alloy contacts, it ensures excellent electrical conductivity and consistent performance over its extensive operational lifespan. With a minimum life expectancy of 10,000 cycles, this component is designed for repeated use in demanding applications.

This through-hole mounted switch is rated for a maximum current of 200mA and a maximum DC voltage of 30V, making it suitable for a wide array of signal routing and circuit control tasks. It offers a robust minimum insulation resistance of 100MΩ, providing reliable electrical isolation and safety. The switch operates effectively across a broad temperature range from -20°C to 70°C, ensuring stable performance in various environmental conditions.

Its compact and vertical orientation makes it an ideal choice for space-constrained printed circuit board (PCB) layouts. The EG1218 is part of the trusted EG Series from E-SWITCH, known for delivering dependable switching solutions for precision electronics.

Key Features:

• Contact Configuration: Single-pole, double-throw (SPDT)
• Contact Material: Silver-plated copper alloy
• Electrical Rating: 200mA at 30V DC
• Durability: Minimum 10,000 mechanical cycles
• Insulation: 100MΩ minimum insulation resistance
• Temperature Range: -20°C to 70°C operating
• Mounting: Through-hole for secure PCB installation
• Dimensions: Compact subminiature footprint
