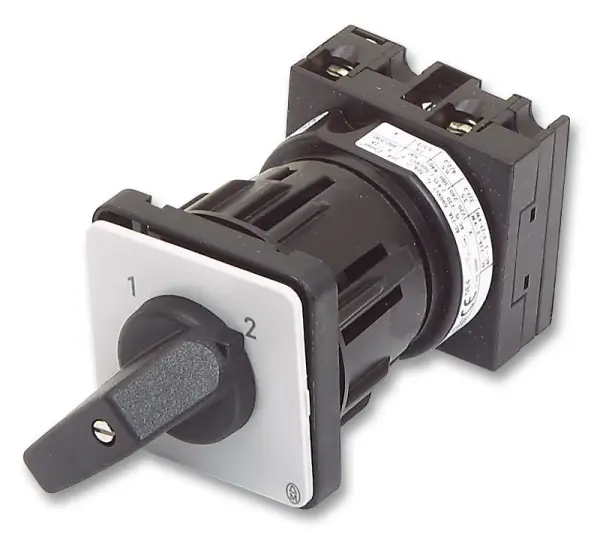

EATON MOELLER Cam Switch, 20A Thermal Current, 2 Position

The EATON MOELLER Cam Switch is a robust and reliable switching component engineered for demanding industrial environments. It provides IP55 protection in front of the panel, offering a high degree of defence against dust and water jets, making it suitable for use in challenging conditions where contaminants are present. This switch is designed for a 22.5mm mounting hole and is conveniently supplied with a front plate, ensuring a straightforward and secure panel installation.

This versatile device is commonly used for mains switching, control circuit switching, or motor load switching, providing a durable and safe method for controlling electrical power. It features a thermal current rating of 20A and is capable of handling significant loads, with a 3-phase rating of 3kW at 220/240V and 5.5kW at 380/440/500V. Its operating current is rated at 12A, or 6A specifically at 220V.

Key Specifications & Features

• Mounting: Designed for a 22.5mm hole and includes a front plate.
• Switching Configuration: Features 2 positions and 1 pole, with a 90° angle of throw for positive switching action.
• Electrical Ratings: Offers a maximum AC contact current of 20A and a maximum AC contact voltage of 690V. For DC applications, the maximum contact current is 10A.
• Physical Dimensions: The rear panel dimensions are 45mm (Height) x 48mm (Width) x 61mm (Depth), providing a compact footprint.
• Series: Part of the reliable T0 Series from EATON MOELLER.
• Indicator: This model is non-illuminated.

Constructed from quality materials, this cam switch is built for longevity and consistent performance in control panels and machinery. Its design ensures safe and effective switching for a wide range of industrial and commercial electrical applications.
