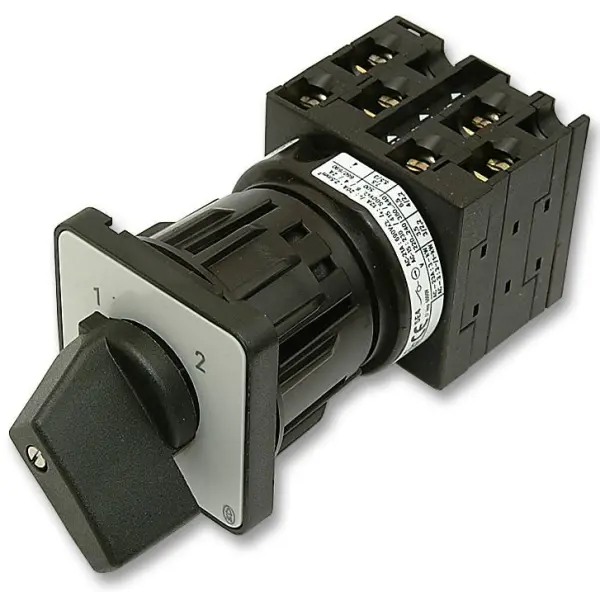

EATON MOELLER T0 Series Cam Switch, Non-Illuminated, 3 Pole, 2 Position, IP55

The EATON MOELLER T0 Series Cam Switch is a robust and reliable manual switching device designed for industrial control applications. Engineered for durability, it features a high level of IP55 protection at the front of the panel, making it resistant to dust and low-pressure water jets, which is ideal for demanding environments.

This switch is specifically used for mains switching, control circuits, and motor load switching, offering versatile functionality. Its 3-pole, 2-position configuration with a 90° angle of throw provides positive switching action for precise control. It is supplied complete with a front plate for a professional and secure panel mounting.

With a thermal current rating of 20A and an operating current of 12A (6A at 220V), it handles substantial electrical loads. The switch's contact ratings support a maximum AC current of 20A and a maximum AC voltage of 690V, ensuring compatibility with a wide range of industrial power systems. For three-phase applications, it is rated for 3kW at 220/240V and 5.5kW at 380/440/500V.

Constructed for long-term reliability, the switch is a non-illuminated model, providing a simple and cost-effective solution. Its compact design facilitates installation in control panels and cabinets where space is at a premium. The 22.5mm mounting hole type ensures compatibility with standard panel cut-outs.

Key Specifications:

• Protection Rating: IP55 (front of panel)
• Mounting: 22.5mm hole type, supplied with front plate
• Switch Configuration: 3 Pole, 2 Position
• Electrical Ratings: Thermal current 20A, Operating current 12A (6A @ 220V)
• Three-Phase Power: 3kW (@220/240V), 5.5kW (@380/440/500V)
• Contact Rating: AC 20A / 690V Max
• Dimensions (Rear Panel): 45mm (H) x 48mm (W) x 80mm (D)
• Angle of Throw: 90°

This cam switch is an essential component in
