Equinox Butterfly Quad MKII Multi-Beam Effect Moving Head Light

The Equinox Butterfly Quad MKII is a multi-beam moving head effect light that projects eight sharp, long-throw beams from eight 10W quad-colour LEDs (RGBW).

Overview

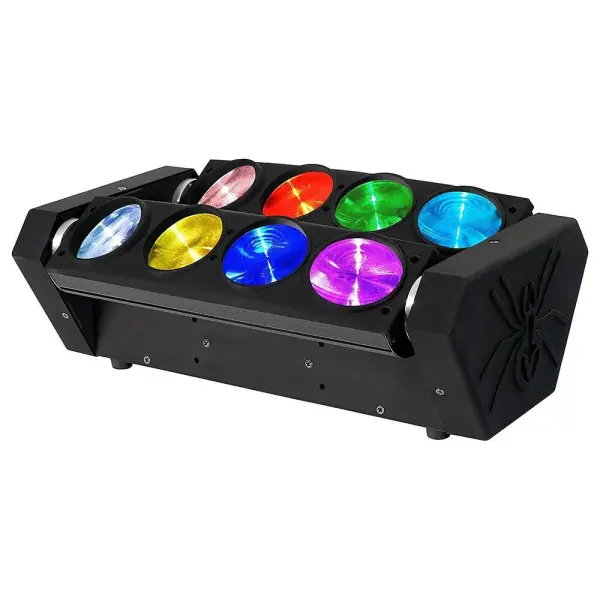

The fixture features two sweeping LED bars, each carrying four individually controllable narrow beams. Together they project a total of eight beams that are designed to cut through air and smoke with clarity. The unit has a 3° beam angle, which suits defined beams and aerial effects, and a 160° tilt range for dynamic movement. It is robustly built.

Control and Operation

The fixture is operated through a four-button menu with an LED display for navigation and configuration. It offers auto, sound active and DMX control modes, with selectable DMX channel modes of 1, 6, 12 or 36 channels. Master/slave functionality allows multiple fixtures to be synchronised for shows.

Key Features

• Eight 10W quad-colour LEDs (RGBW)
• Two LED bars with four narrow beams each
• 3° beam angle
• 160° tilt range
• Pixel mapping capabilities for intricate patterns
• 4kHz refresh rate
• Full 0-100% dimming
• Variable strobe effect

Installation and Power

The Butterfly Quad MKII is supplied with a hanging bracket. It features IEC power input/output and 3-Pin XLR input/output for daisy-chaining. It accepts a power supply of 100V to 240V at 50/60Hz and consumes 100W. The unit is supplied with a UK mains plug (Type G).

Dimensions and Weight

Width 3.3, depth 1.5 and height 4.3, with a weight of 4100 g.

Suited to DJs, live bands, nightclubs and theatrical productions, the Equinox Butterfly Quad MKII adds professional-grade beam effects to a lighting rig. Choose this fixture when you need a multi-beam effect light with DMX control and synchronisation for multiple units.
