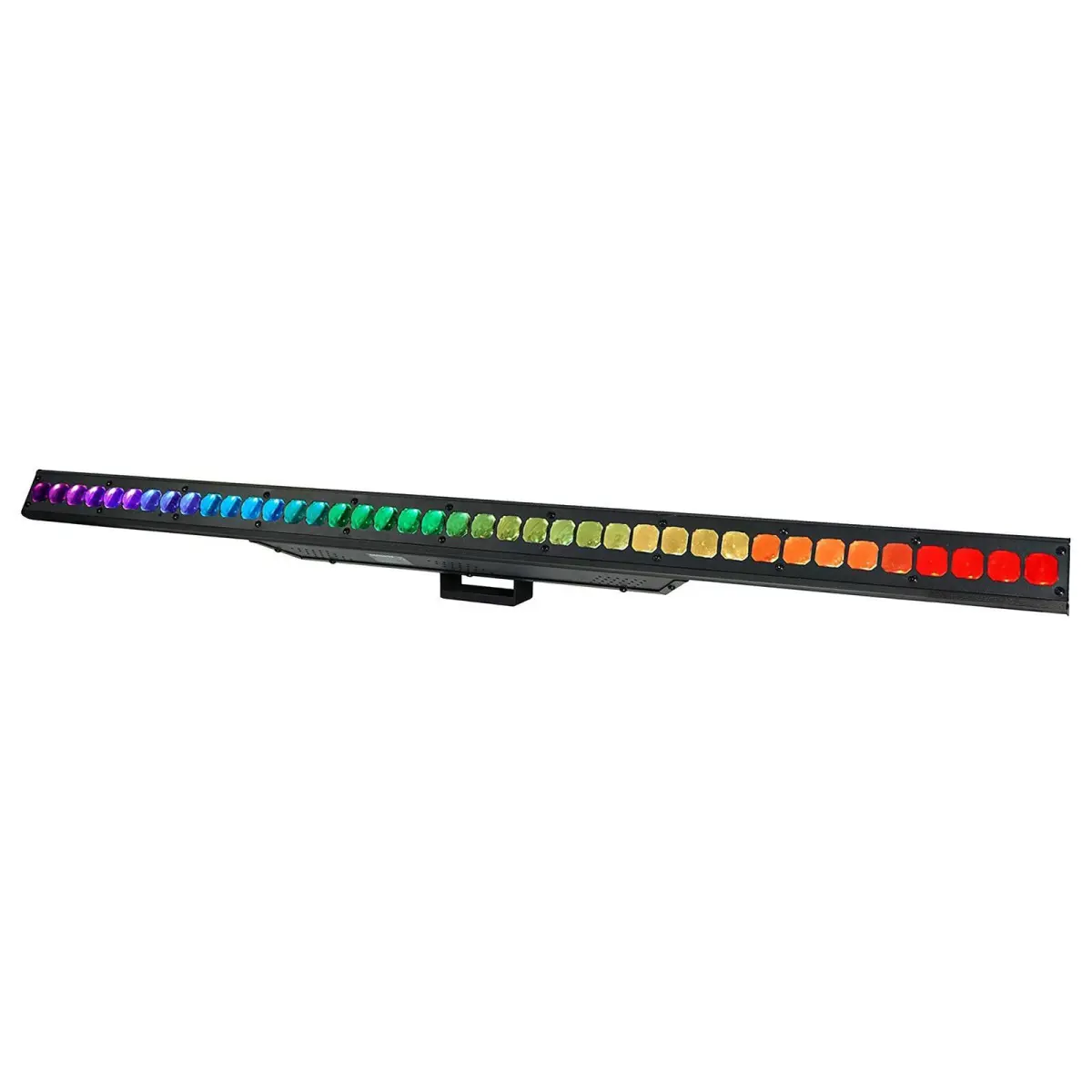

Equinox PIXELpoint 40 x 3W 3-in-1 RGB LED Batten

The Equinox PIXELpoint is a versatile multi-beam LED batten featuring 40 x 3W 3-in-1 RGB individually controllable LEDs. Designed to dispense narrow, long-throw beams with a 5° angle, it creates sharp mid-air effects perfect for captivating visual displays.

Packed with multiple flows and chases, this batten produces stunning eye-candy effects. For full creative control, DMX can be utilised via 13 different channel modes, allowing each pixel to be mapped for intricate visual displays. Power and DMX linking provide straightforward connection for multiple units, streamlining your setup.

Key Features and Modes

The unit supports static colour, auto, sound-active, and master/slave modes, offering flexibility for any event. It features smooth 0-100% dimming and a variable strobe for dynamic lighting cues. A 4-button menu with an LED display ensures easy navigation, while the included mounting bracket facilitates versatile installation options.

Technical Specifications

• 40 x 3W tri-colour LEDs (RGB)
• 5° beam angle for narrow, long-throw effects
• 4kHz refresh rate for flicker-free operation
• Pixel mapping capabilities for advanced DMX control
• DMX channels: 3/4/6/7/8/12/13/24/25/60/61/120 or 121 selectable
• powerCON input/output and 3-Pin XLR input/output
• Fan cooled for reliable continuous use
• Power consumption: 76W
• Power supply: 100~240V, 50/60Hz
• Supplied with a UK mains plug (Type G)

With its robust construction and comprehensive feature set, the Equinox PIXELpoint is an excellent addition to any lighting rig, offering professional-grade performance and dynamic visual effects.
