FTDI MM232R USB to UART Module Development Kit

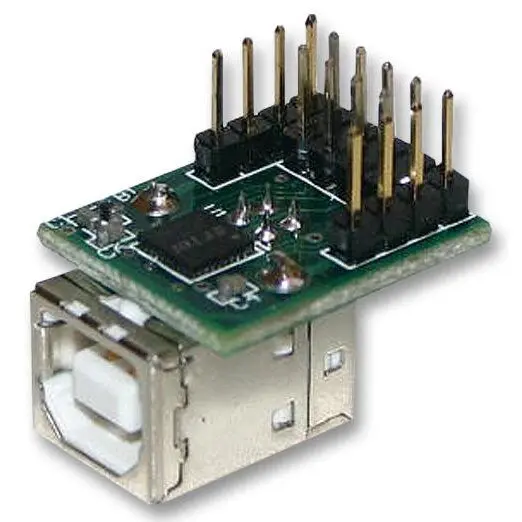

The FTDI MM232R USB to UART Module Development Kit is a compact USB to serial UART development module built around the FT232RQ integrated circuit. Its small footprint makes it suitable for new development projects or for adding USB connectivity to existing designs.

Overview

Powered directly from the USB port, the module supports RTS/CTS hardware handshaking and enables high-speed serial data communication at TTL levels, with transfer rates of up to 3 MBaud. Several configurable CBUS pins from the FT232R are brought out, allowing the MM232R to generate clock signals for external logic.

Key Features

• Single-chip solution, with the USB protocol managed on the chip
• Baud rates from 300 baud up to 3 megabaud
• Hardware handshaking (fully assisted) or X-On/X-Off software handshaking
• 1024-bit internal EEPROM for custom USB Vendor ID (VID), Product ID (PID) and serial number
• Bus-powered, self-powered and high-power bus-powered USB configurations
• FTDI royalty-free Virtual COM Port (VCP) and D2XX drivers
• True 5V, 3.3V, 2.8V and 1.8V CMOS drive output with TTL input compatibility
• Low operating and USB suspend current
• Connects to a PC using a standard USB A to B cable

Dimensions and Weight

Width 3.3, depth 1.5 and height 4.3, with a weight of 300 gm.

Choose the FTDI MM232R USB to UART Module Development Kit for projects that require a straightforward USB to serial interface with configurable power options and flexible handshaking.
