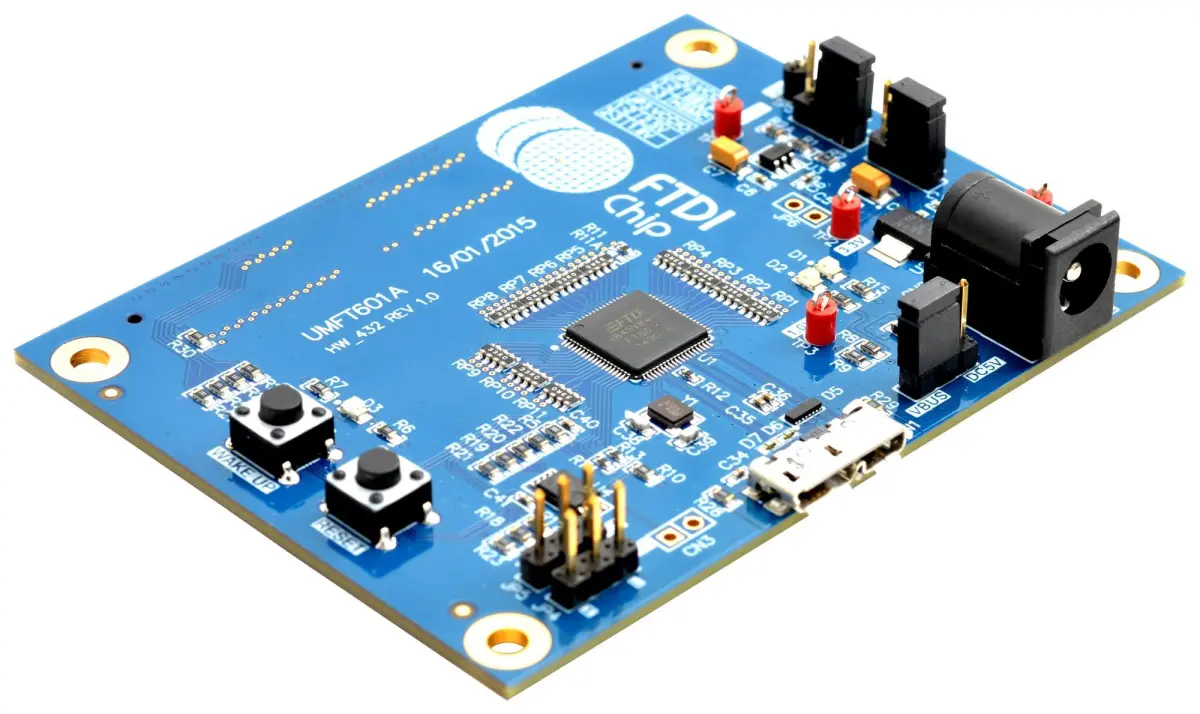

FTDI UMFT601A FT601 32-bit FIFO to USB3.0 Evaluation Board

The FTDI UMFT601A Evaluation Board provides a comprehensive platform for evaluating the functionality of the FT60x USB 3.0 SuperSpeed bridge IC. It enables seamless interfacing between a 32-bit FIFO bus and a USB 3.0 host, supporting high-speed data transfer for a wide range of applications.

The board features an HSMC connector for direct connection to compatible FPGA reference design boards, primarily those based on Altera devices, while also accommodating FMC connectors for use with most Xilinx FPGA boards. This flexibility makes it an essential tool for engineers and developers working on high-speed interface designs.

Key capabilities include:

• High-speed data transfer: Supports USB 3.0 SuperSpeed (5Gbps), USB 2.0 High-Speed (480Mbps), and USB 2.0 Full-Speed (12Mbps) modes.
• Flexible FIFO communication: Provides 4 IN and 4 OUT channels on the FIFO bus for simultaneous data streaming.
• Multi-voltage I/O: Operates with 1.8V, 2.5V, or 3.3V logic levels to match various system requirements.
• Multiple power options: Can be powered via external DC, USB bus, or through the FMC/HSMC connector, offering installation flexibility.
• Advanced features: Includes hardware reset and remote wake-up functionality, as well as a Micro-USB 3.0 receptacle for connection to a host PC.

The board is designed for easy integration with FPGA development platforms, helping to accelerate prototyping and validation of USB 3.0 interfaces. Its compact size and robust construction ensure reliable performance in development lab environments.

Application landscape:

• Ideal for bridging 32-bit FIFO buses to USB 3.0 hosts.
• Suitable for use with FPGA evaluation boards from Xilinx and Altera.
• Perfect for prototyping high‑speed data acquisition and transfer systems.

Specifications:

• Silicon Manufacturer: FTDI
• Core Silicon:
