HARWIN 2.54mm 72-Way Male DIL Pin Header
Gold-plated HARWIN 2.54mm male DIL pin header (72-way, 2-row) for secure board-to-board connections in industrial & commercial use.

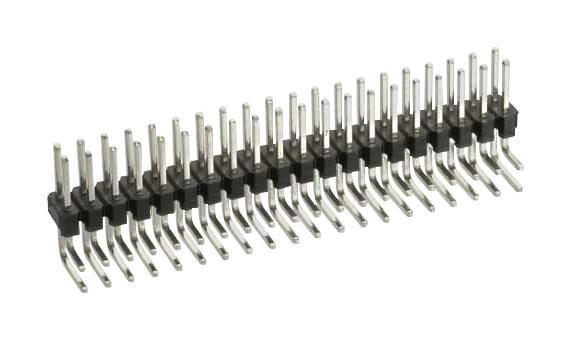

The HARWIN M20-9953645 is a high-quality, 2.54mm pitch male DIL board-to-board pin header featuring 72 gold-plated phosphor bronze contacts for reliable electrical connectivity. The black UL94V-0 polyamide (nylon) 6T housing ensures durability and flame retardancy, making it suitable for various demanding environments.
Designed with a 3mm PC tail and horizontal connector orientation, this header is ideal for through-board connections, providing a secure and stable interconnection between PCBs. It is compatible with 0.64mm square mating pins, ensuring versatile application potential.
Key Electrical Specifications
- Maximum Current Rating: 3A
- Maximum Contact Resistance: 25mΩ
- Minimum Insulation Resistance: 1000MΩ
- Dielectric Strength: 750V AC/DC
- Durability (Gold-Plated Contacts): 300 operations
With robust construction and gold-plated terminations, this pin header delivers low insertion loss and long-term reliability, making it well-suited for both commercial and industrial applications where consistent performance is critical.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- * **Commercial electronics (e.g., test equipment, control panels)**
- * **Industrial PCB interconnects**
- * **Board-to-board applications**
- * **High-reliability electronics assembly**
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- **Connector Type:** 2.54mm Male DIL
- **No. of Contacts:** 72
- **No. of Rows:** 2
- **Pitch Spacing:** 2.54mm
- **Contact Material:** Phosphor Bronze
- **Contact Plating:** Gold Plated (Termination & Contacts)
- **Housing Material:** UL94V-0 Polyamide (Nylon) 6T
- **PC Tail Length:** 3mm
- **Connection Type:** Through Hole
- **Max Current Rating:** 3A
- **Max Contact Resistance:** 25mΩ
- **Min Insulation Resistance:** 1000MΩ
- **Dielectric Strength:** 750V AC/DC
- **Durability (Gold Plating):** 300 Operations
- **Compatible with:** 0.64mm Square Mating Pins
- **Weight:** 10g (approx.)
