HARWIN 2 Row, 4 Way Pin Header, 8 Contacts, 2.54mm Pitch
Gold-plated HARWIN pin header (8 contacts, 2.54mm pitch) for industrial and board-to-board applications.

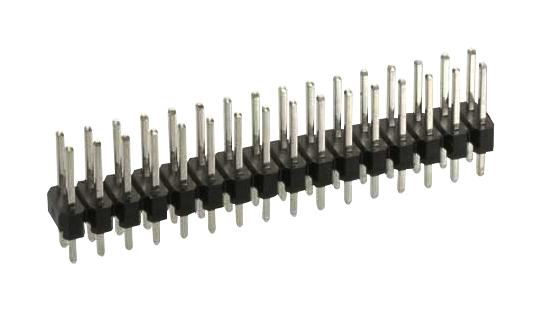

The HARWIN M20-9980445 Pin Header is a high-quality, 8-way DIL vertical pin header designed for robust connectivity solutions. With a 6.1mm mating pin height, this header features gold-plated phosphor bronze contacts for superior conductivity and durability, housed in a black UL94V-0 polyamide (nylon) 6T casing for heat and flame resistance.
Key Features
- Durable Construction: Phosphor bronze contacts with gold plating ensure reliable, low-resistance connections.
- Versatile Use: Compatible with female connectors and jumper sockets for flexible applications.
- Customisable Length: Pin headers can be cut to fit smaller configurations.
- High Performance: Rated for 3A contact current, 25mΩ maximum contact resistance, and 1000MΩ minimum insulation resistance, ensuring stable signal transmission.
- Longevity: Tested up to 300 mating cycles for extended durability.
Applications
This pin header is ideal for:
- Industrial equipment requiring robust interconnections.
- Board-to-board connector systems, facilitating secure PCB links.
- Prototyping and custom electronics, where adjustable pin counts are beneficial.
With its 2.54mm pitch spacing, 2 rows, and through-hole termination, the M20-9980445 integrates seamlessly into diverse electronic designs, offering engineers a reliable and adaptable solution.
- Industrial electronics
- Board-to-board connectivity
- Prototyping circuits
- Jumper and socket connections
- Mating Pin Height: 6.1mm
- Contact Material: Phosphor Bronze
- Contact Plating: Gold Plated
- Housing Material: UL94V-0 Polyamide (Nylon) 6T
- Contact Pitch: 2.54mm
- Contact Rating: 3A
- Max Contact Resistance: 25mΩ
- Min Insulation Resistance: 1000MΩ
- Durability: 300 Mating Cycles
- Number of Rows: 2
- Number of Contacts: 8
- Termination Type: Through Hole
- Product Range: M20 Series
- Shroud Type: Unshrouded
- Weight: 590g
