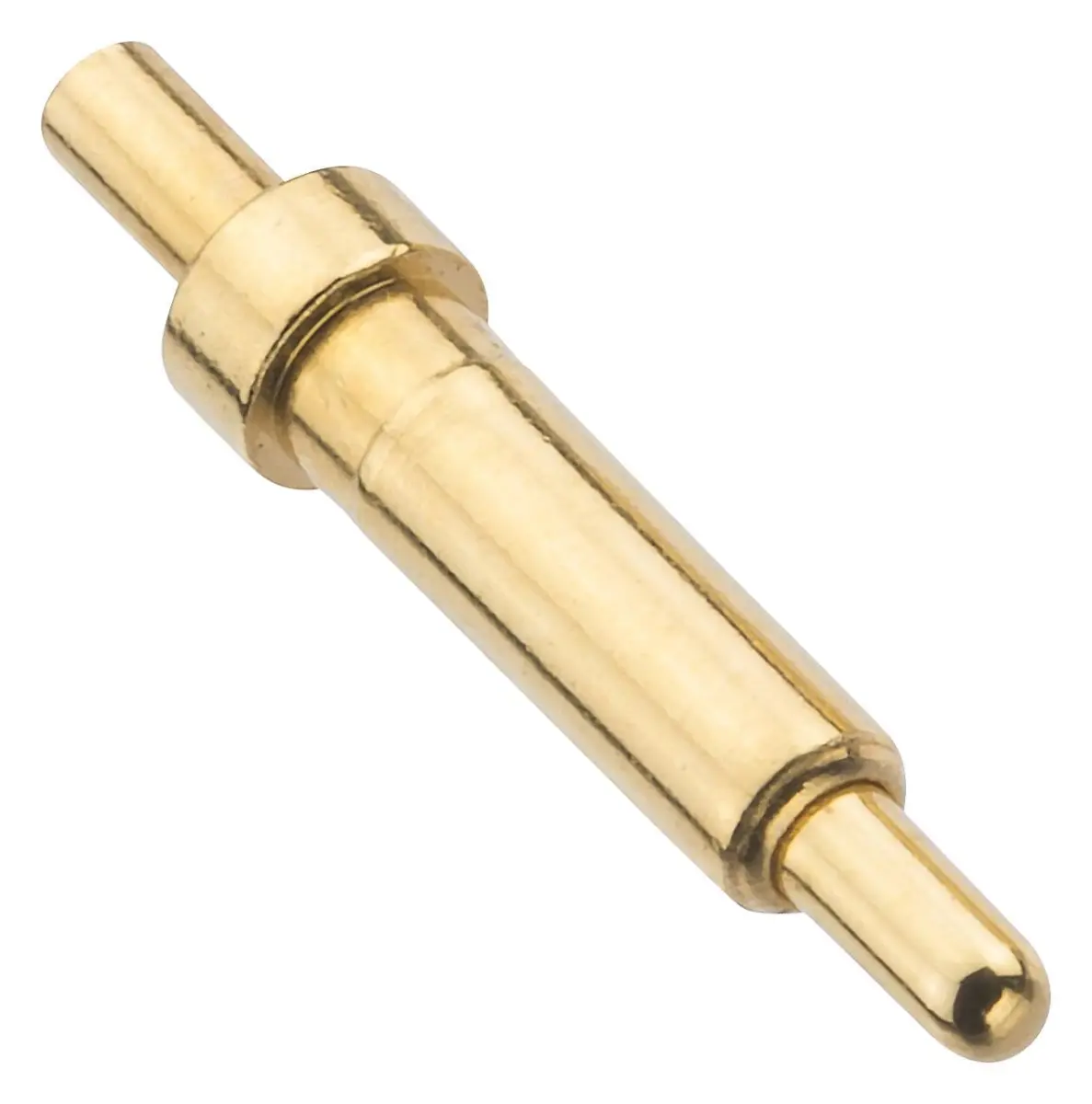

Harwin Individual Spring Loaded Contact / Pogo Pin, 2A - 8.2mm

The Harwin Individual Spring Loaded Contact / Pogo Pin is a high-reliability interconnect solution designed for surface mount applications. Featuring a robust design with a location peg or PC tail mounting, this versatile pogo pin is engineered for secure soldering. The PC tail provides excellent location accuracy and lateral strength, ensuring stability within your circuit board assembly.

This spring loaded contact is highly adaptable and mates seamlessly with any contact surface, as well as Harwin's S70 series surface mount technology (SMT) contact pads. To ensure long-lasting performance and consistent conductivity, the contact features a durable gold finish that offers superior wear resistance over extended use and mating cycles.

With a vertical connector orientation and a female spring contact design, this component is ideal for compact and densely packed electronic assemblies. It supports a current rating of 2A, making it suitable for a variety of low-power signal and power transfer applications. The connector boasts an operating temperature range from -40°C to +85°C, ensuring reliable functionality in demanding environments. Additionally, it can withstand a maximum soldering temperature of 260°C for up to 10 seconds, facilitating compatibility with standard lead-free soldering processes. Featuring a pointed tip style, this spring loaded pin provides precise and dependable contact every time. The product has dimensions of 33 mm in height, 22 mm in width, and 2 mm in depth, with a weight of just 0.103 grams.

Variant Details

• Size: 8.2mm
