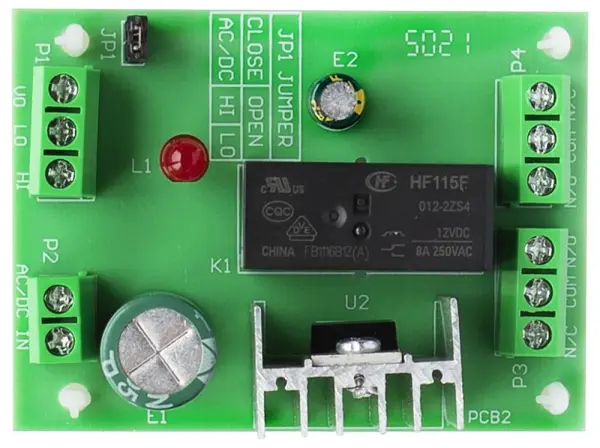

Haydon Low Voltage AC/DC Universal Relay DPDT

The Haydon Low Voltage AC/DC Universal Relay is a versatile and easy-to-fit module designed for professional switching applications where a dry contact or voltage-free switching is required. It handles both AC and DC supplies with automatic voltage selection, making it suitable for a wide range of installations where higher-than-usual currents and voltages need to be switched.

This relay operates on 9-30V AC or 10.5-36V DC, with no jumper links needed to select the voltage. It is not polarity conscious, simplifying wiring and reducing the risk of incorrect installation. The DPDT (double-pole double-throw) relay is rated at 8A and can be activated by power supply, high signal, or low signal, allowing it to switch two outputs simultaneously.

Key Features

• Works on AC or DC (automatic voltage selection)
• No jumper links required for voltage selection
• Not polarity conscious
• Triggered by power supply, high signal, or low signal
• LED indication when relay is energised
• Energy-saving feature allows operation at higher voltages

With a compact design and light weight, this universal relay is ideal for integration into control panels, automation systems, and custom electronic projects. The LED indicator provides clear visual feedback when the relay is active, while the energy-saving feature enhances efficiency at higher supply voltages. Trust the Haydon Low Voltage AC/DC Universal Relay for reliable and safe switching in your next project.
