HAYDON Selectable Power Supply 12/24V DC, 4/2A
Versatile HAYDON power supply with selectable 12/24V DC, 4/2A output, 4-way fuse board & battery housing for industrial control.
The HAYDON Selectable Power Supply offers versatile and reliable 12V or 24V DC power, delivering 4A or 2A to suit a wide range of applications. Its intelligent design includes a versatile 4-way fuse board with independent, switchable outputs, providing precise control over connected devices.
Each output can be triggered via the integrated relay using Normally Closed (NC), Normally Open (NO), positive (+) or negative (-) terminals (5-24V DC). This allows for sophisticated automation, where each time the relay is activated, the individual outputs can be set to either maintain (hold) or cut (drop) power as required for each specific device, enabling complex sequential or conditional power management.

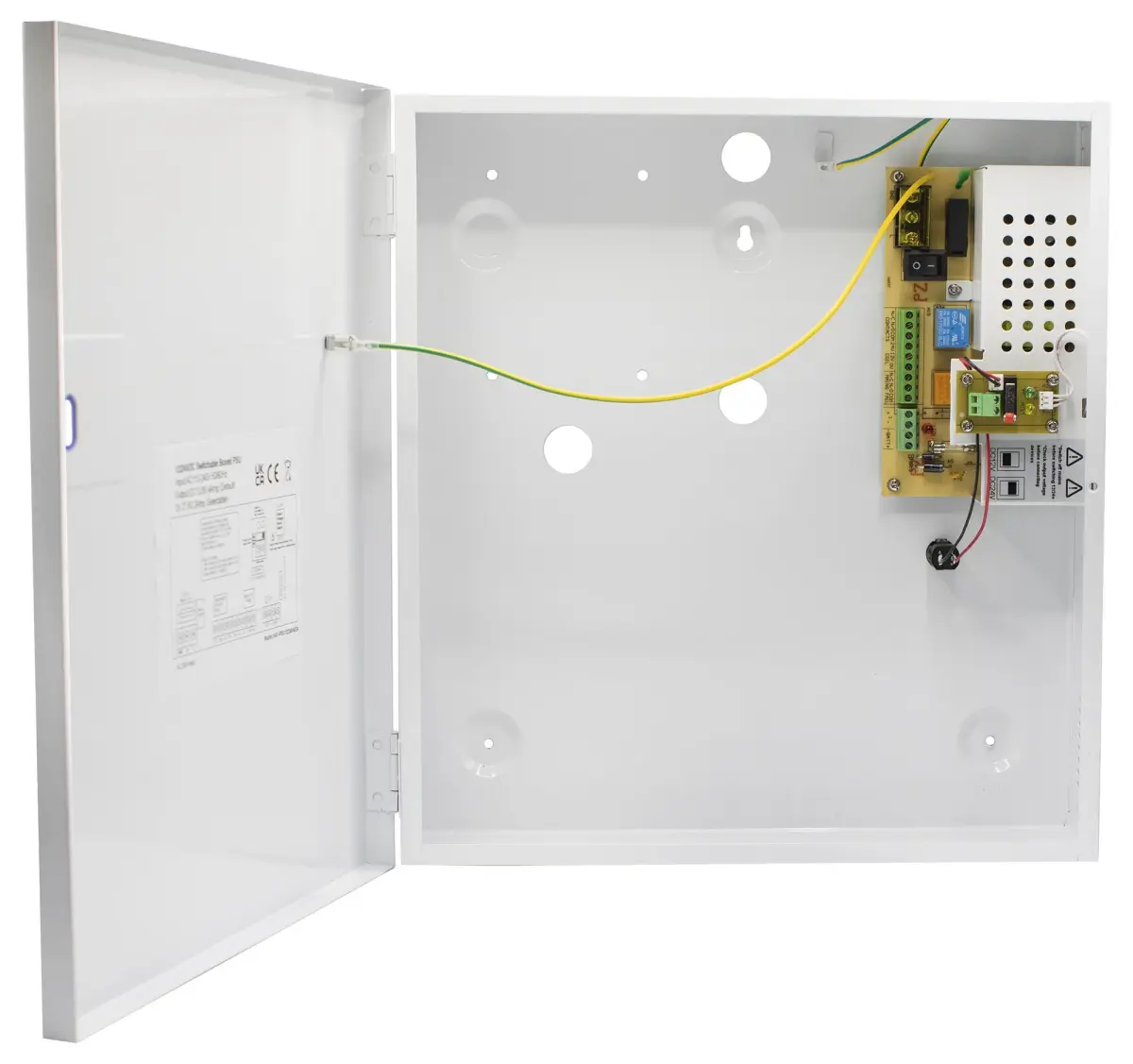

Built for resilience and extended operation, the unit's robust enclosure is designed to house 2x 7Ah batteries, providing essential backup power or supporting off-grid installations. This feature ensures continuity and reliability for critical systems.
With a wide input voltage range of 100V AC to 240V AC, this fixed-output power supply is suitable for global use and excels in demanding industrial environments. Its compact and durable construction, part of the Haydon Marketing HAY-PSU12/24 Series, makes it an ideal central power management solution for automation, security, and control panels.
Key Specifications:
- Input Voltage: 100-240V AC
- Selectable Output: 12V DC / 4A or 24V DC / 2A
- Control: 4-way fuse board with independent, relay-triggered outputs
- Relay Triggers: NC, NO, +, - (5-24V DC)
- Output Modes: Hold or drop power per device on trigger
- Battery Housing: For 2x 7Ah batteries
- Construction: Industrial-grade enclosure
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
