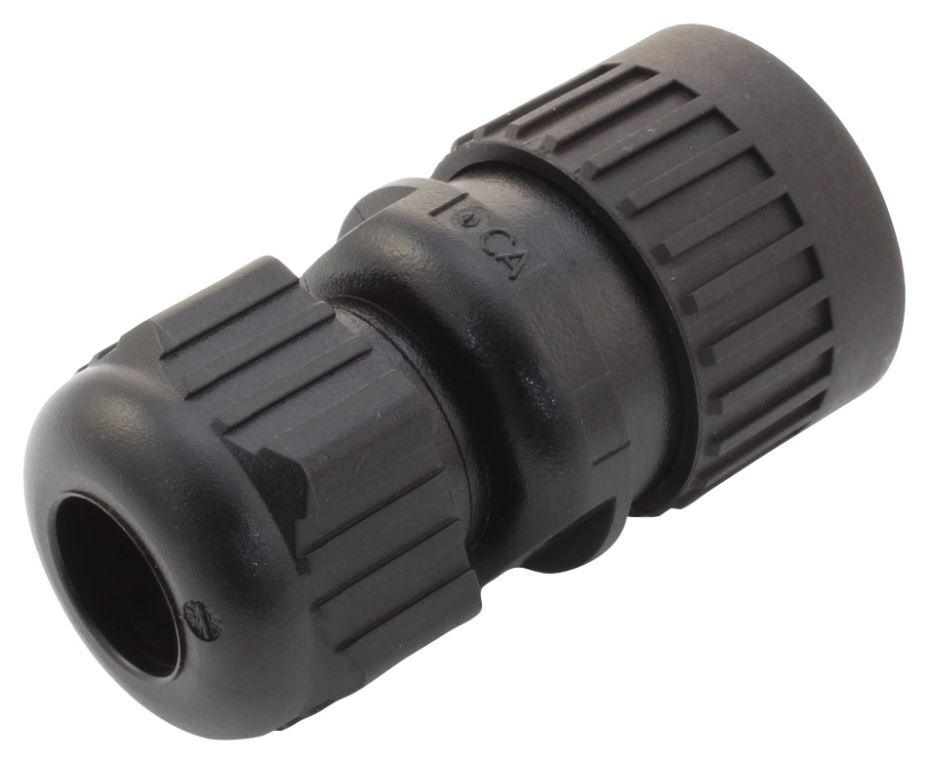

Hirschmann CA6LD Cable Socket, 6+PE Way, 250V AC/DC, IP67
Industrial-grade 6+PE circular connector with IP67 rating, 250V/10A capacity, & vibration-proof design for machinery & control systems.
The Hirschmann CA6LD is a robust, field-attachable circular cable socket connector designed for industrial applications requiring reliable power connections with 6+PE contacts. This versatile connector is ideal for control cable applications in hydraulic, pneumatic systems, and special machinery construction, offering exceptional durability and ease of installation.
Featuring an integrated strain relief system, this connector ensures high vibration resistance and secure connections even under extreme stress. The impact-resistant nylon housing and screw-locking mechanism provide long-lasting performance in demanding environments, including machinery engineering, control systems, medical equipment, and the chemical industry.
Key Specifications:
- IP67-rated dust and water protection
- Max conductor cross-section: 0.75mm²
- Operating voltage: 250V AC/DC
- Current rating: 10A AC/DC
- Temperature range: -40°C to +90°C
Certified by leading standards including VDE, UR, SEV, and CSA, the CA6LD features silver-plated brass contacts for optimal conductivity and solder connections for reliability. With a threaded coupling style, this connector is designed for secure, vibration-resistant installations in industrial, medical, and power management systems.
- Industrial machinery
- Hydraulic & pneumatic systems
- Control engineering
- Electrical medical equipment
- IP67 protection rating
- Max conductor cross-section: 0.75mm²
- Operating voltage: 250V AC/DC
- Current rating: 10A AC/DC
- Certifications: VDE, UR, SEV, CSA
- Contacts: 7 (6+PE), silver-plated brass
- Connection type: Solder
- Housing material: Nylon (Polyamide)
- Coupling style: Threaded
- Temperature range: -40°C to +90°C
- Weight: 30g
- Colour: Black
Always follow local regulations and product guidance.
