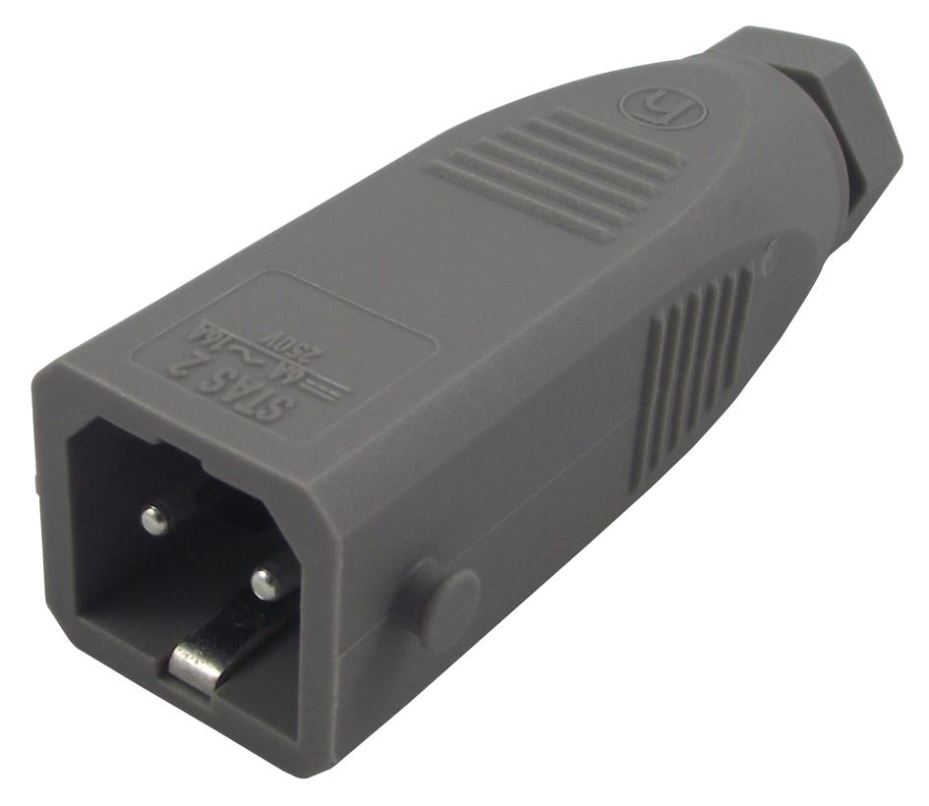

Hirschmann STAS2 2+PE Contact Cable Plug, PG 7 Gland
Hirschmann STAS2 2+PE industrial plug with screw termination, tin-plated contacts & flame-rated housing. Rated 250V/16A.
The Hirschmann STAS2 is a high-quality 2+PE-contact cable plug designed for industrial applications. Featuring tin-plated brass contacts and a robust PG 7 cable gland, this connector ensures reliable electrical connections in demanding environments.
The plug utilises a screw-type termination for secure wire connections and is constructed with a PA (polyamide) contact bearer and housing. The contact bearer is UL94V-0 flame-rated, while the housing meets UL94HB flame resistance standards, offering excellent safety and durability.
Key Specifications:
- Cable Compatibility: 4 to 6.5mm diameter cables
- Conductor Size: Maximum 1.5mm²
- Rated Voltage: 250V AC/DC
- Current Rating: 16A AC / 10A DC
- Housing Colour: Grey
This plug is ideal for industrial wiring, control panels, and machinery installation, providing secure and long-lasting connectivity. The pin contact gender ensures easy mating with compatible sockets, while the screw termination prevents accidental disconnection.
Applications:
- Industrial control systems
- Machinery wiring
- Panel connections
- Automation equipment
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Industrial control installations
- Machinery electrical connections
- Control panel wiring
- Automation systems
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Series: ST
- No. of Contacts: 2 + PE
- Connector Mounting: Cable Mount
- Contact Termination: Screw
- Gender: Plug
- Contact Gender: Pin
- Contact Material: Brass
- Contact Plating: Tin-plated
- No. of Rows: 1
- Housing Material: PA (Polyamide)
- Flame Rating (Contact Bearer): UL94V-0
- Flame Rating (Housing): UL94HB
- Cable Diameter: 4 to 6.5mm
- Max Conductor Size: 1.5mm²
- Rated Voltage: 250V AC/DC
- Current Rating: 16A AC / 10A DC
- Weight: 20g
Always follow local regulations and product guidance.
