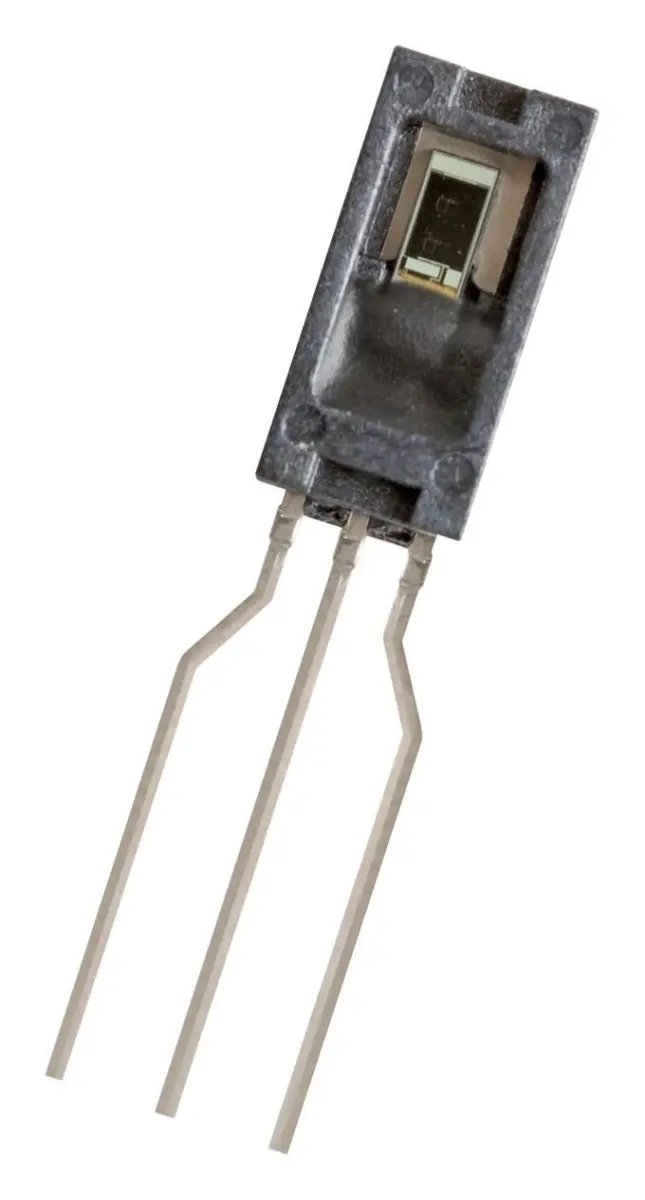

HONEYWELL HIH-4000-003 Humidity Sensor 3.5% SIP 5.8V

The HONEYWELL HIH-4000-003 is a high-performance, instrumentation-grade humidity sensor designed specifically for demanding original equipment manufacturer (OEM) applications. Its near-linear voltage output relative to percentage relative humidity (%RH) allows for direct input to a microcontroller or other logic device, simplifying system design and integration.

A standout feature is its exceptionally low power consumption, with a typical current draw of only 200µA. This makes it an ideal choice for battery-operated systems, portable devices, and other applications where energy efficiency is paramount. The sensor's laser-trimmed thermoset polymer capacitive sensing element, coupled with on-chip integrated signal conditioning, provides reliable and accurate measurements.

Key Benefits

• Tight Interchangeability: Laser trimming ensures consistent performance from sensor to sensor, which can significantly reduce or even eliminate production line calibration costs for OEMs.
• Robust Construction: The sensing element features a multilayer construction housed in a moulded thermoset plastic casing, offering excellent resistance to common environmental hazards including condensation, dust, dirt, oils, and many chemicals.
• Reliable Performance: Enjoy stable, low-drift readings and a fast response time, delivering precision you can count on in variable conditions.

Technical Specifications

• Supply Voltage: 5.8 VDC (operating range 4 VDC to 5.8 VDC)
• Accuracy: ±3.5% relative humidity
• Humidity Range: 0% to 100% relative humidity
• Response Time: 5 seconds
• Output: Near-linear voltage output
• Package: SIP (Single In-line Package), 3-pin, 2.54mm pitch
• Mounting: Through-hole
• Operating Temperature Range: -40°C to +85°C

With its combination of precision, low power consumption, and robust,
