Honeywell HIH8120 Digital Temperature and Humidity Sensor SIP

The Honeywell HIH8120-021-001 is a fully digital, combined relative humidity (RH) and temperature sensor, delivering highly accurate environmental monitoring. Engineered for precision, it provides an industry-leading humidity accuracy of ±2.0% RH and a temperature accuracy of ±0.8°C. The sensor integrates a true temperature-compensated digital output, ensuring reliable and stable readings across a wide operational range.

This device is celebrated for its exceptional long-term stability, maintaining a drift of just 1.2% RH over five years, which minimises the need for recalibration and ensures dependable performance in long-term deployments. Its energy-efficient design and high-resolution output make it an ideal choice for power-sensitive and data-critical applications.

Key Features

• Combined Sensing: Provides simultaneous digital readings for both relative humidity and ambient temperature.
• High Accuracy: Delivers precise measurements with ±2.0% RH and ±0.8°C accuracy.
• Superior Stability: Features industry-leading long-term stability (1.2% RH over 5 years).
• Digital Interface: Offers flexible communication via a true temperature-compensated I²C or SPI digital output.
• Robust Design: Operates reliably in a broad temperature range from -40°C to 125°C.
• Wide Voltage Range: Compatible with supply voltages from 2.3V to 5.5V.

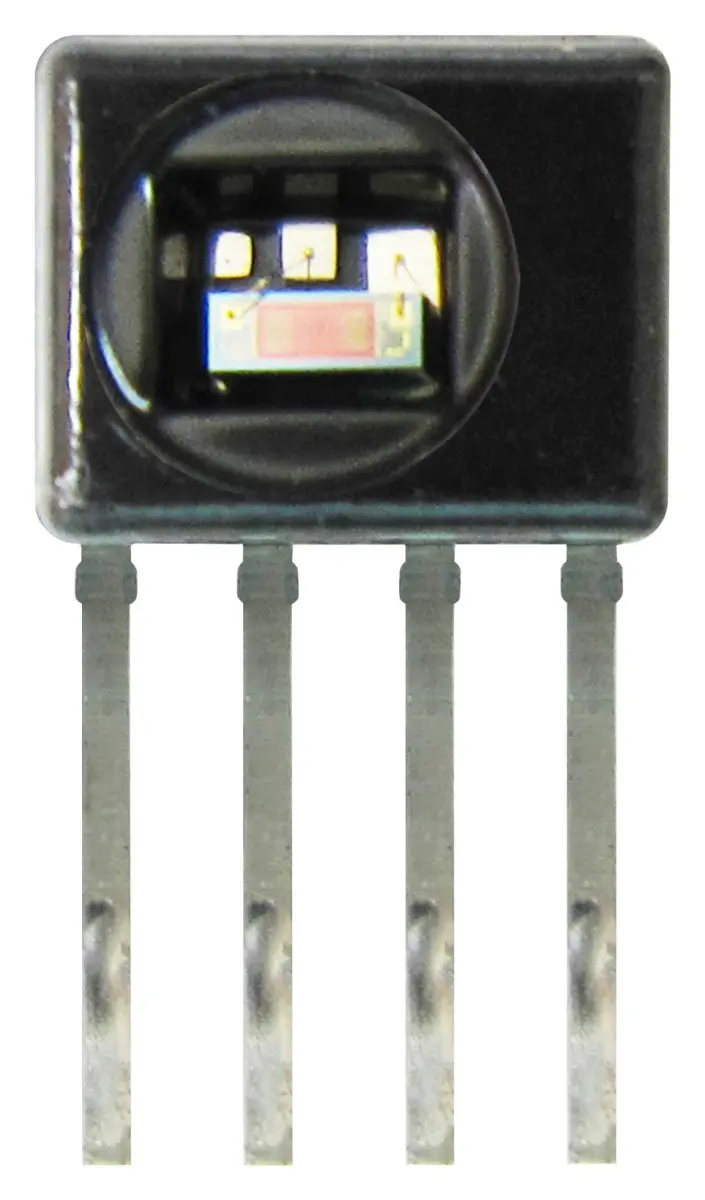

With its compact SIP (Single In-line Package) case style and four-pin configuration, the HIH8120 is designed for easy integration into a wide array of electronic systems and printed circuit boards.
