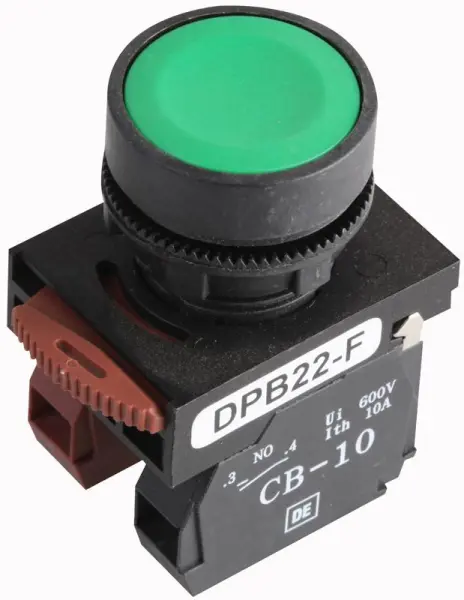

HYLEC Non-Illuminated Flush Push Button Switch - Green

Introducing the HYLEC Non-Illuminated Flush Push Button Switch, a robust and reliable component engineered for demanding industrial control and automation applications. This switch is designed to offer dependable performance within a compact, easy-to-install form factor, making it a versatile choice for a wide array of electrical systems.

The switch is constructed with a high-strength body made from PA66 reinforced with 15% glass fibre, rated V0 for flame retardancy, ensuring excellent durability and safety. It features a sleek, flush-head button design that sits neatly on panel surfaces, providing a clean and professional appearance. Installation is streamlined thanks to a convenient snap-in mounting system, requiring only a 22.5mm diameter panel cutout. Connection is secure and straightforward via screw-clamp terminals, which accommodate single-strand wires up to 2.5mm² and multi-strand wires up to 1.5mm².

This switch boasts a flexible contact configuration with one Normally Open (NO) and one Normally Closed (NC) block, allowing for versatile circuit control. Its electrical ratings are impressive, handling resistive loads up to 3A at 240V AC and electromagnetic loads up to 1.5A at 415V AC. A key feature for industrial environments is its IP66 rating, which certifies it as dust-tight and protected against powerful water jets, ensuring reliable operation even in harsh or washdown conditions. With an insulation resistance greater than 100MΩ at 500V DC and a long mechanical life, this HYLEC switch is built for longevity and consistent performance, making it an essential component for any control system requiring a simple, effective, and durable switching solution.
