ITW Switches 49-59 Series Momentary Pushbutton Switch, Yellow, IP67, 400mA

ITW Switches 49-59 Series Momentary Pushbutton Switch in yellow is a panel mounted control component with an IP67 configuration and a 400mA AC contact rating, designed for industrial control applications.

Overview

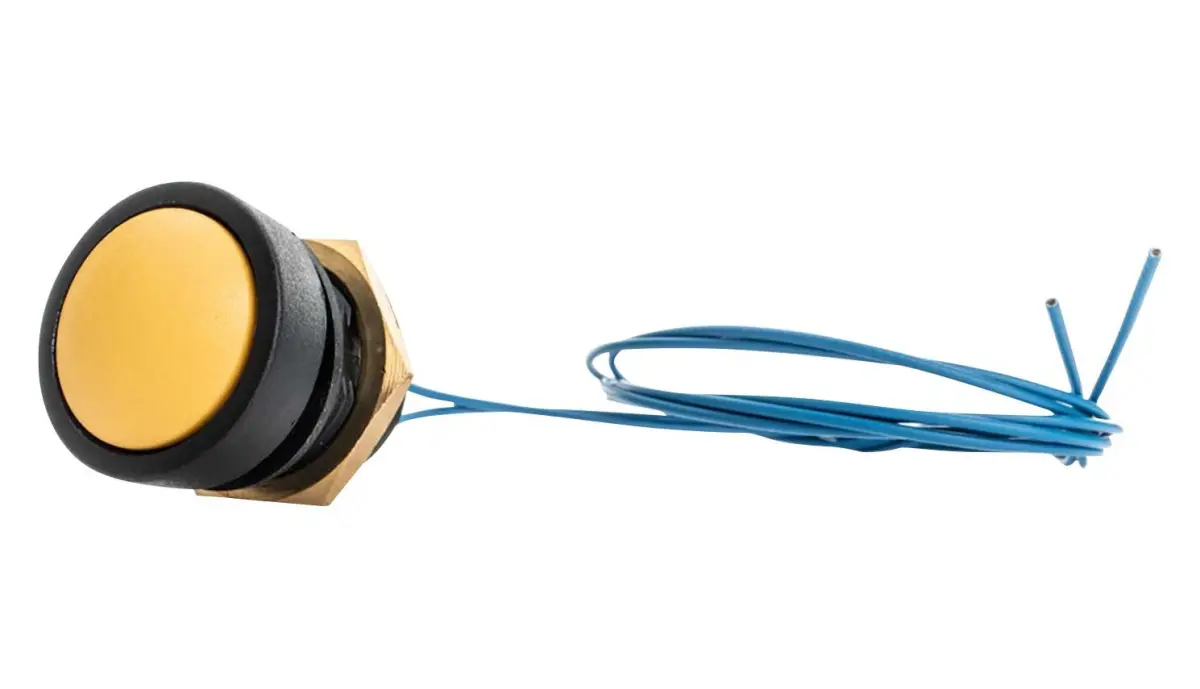

The ITW 49-59 Series Momentary Pushbutton Switch features a round domed yellow actuator and is designed to fit a standard 16 mm panel cutout, making it straightforward to integrate into existing control panels and equipment. The switch uses a momentary action with SPST-NO-DB contact configuration and has an operating force of 3N, providing a crisp and tactile feel. This version is non-illuminated and features a yellow actuator cap.

Key Features

• Momentary action with SPST-NO-DB contact configuration
• Round domed yellow actuator
• Fits a standard 16 mm panel cutout
• Available in panel sealed and fully sealed IP67 configurations
• Gold contacts on microswitch versions for reliable low-level switching
• Insulated flying leads with 500 mm length
• Panel mounted via screw or snap-in fixing

Construction and Materials

The body and button are manufactured from PBT, a hard-wearing thermoplastic polyester that is suitable for surface printing or engraving, supporting clear and durable marking. The switch is flame retardant with a UL rated material and has a wide operating temperature range up to 105°C.

Electrical Ratings

The switch is capable of handling DC loads up to 100mA at 50V and AC loads up to 400mA. It is engineered for long service life and dependable operation.

Dimensions and Weight

• Width: 2.2
• Depth: 0.2
• Height: 3.3
• Weight: 17 gm

Applications

The ITW 49-59 series includes options for round or square bezels, LED status illumination and various contact ratings. Choose the ITW Switches 49-59 Series Momentary Pushbutton Switch in yellow when you need a sealed, panel mounted momentary switch for industrial control applications.
