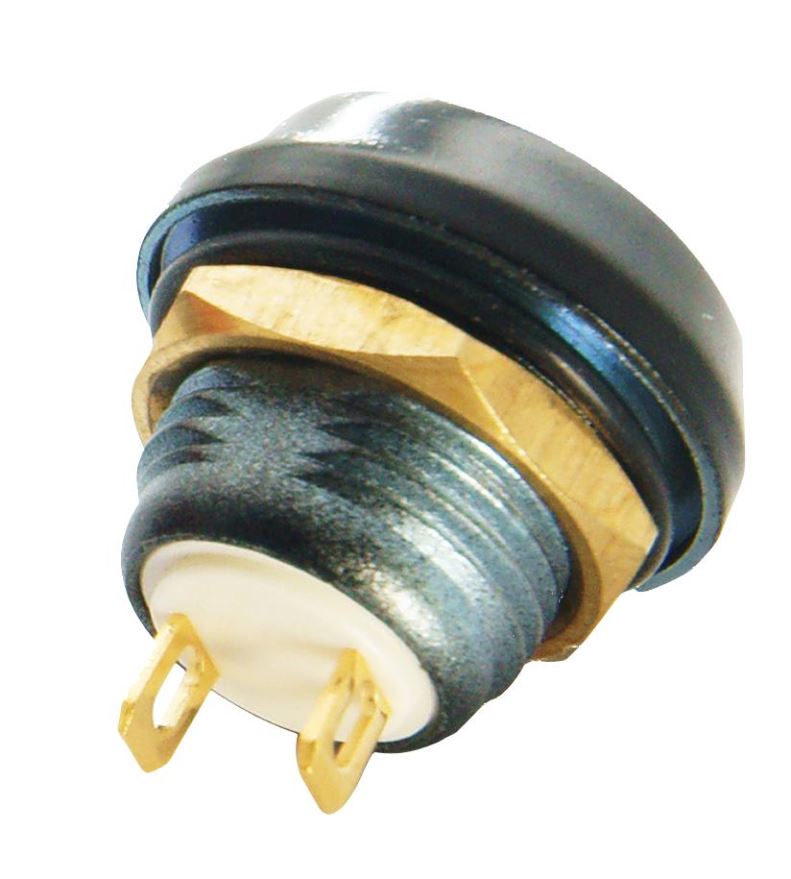

ITW Switches 59 Series Push Switch, SPNO, Momentary, White
Durable ITW 59 series push switch, momentary action, IP67 rating, ideal for industrial and automation applications.
The ITW Switches 59 Series Push Switch is a miniature, momentary action sealed pushbutton switch designed for durability and reliability in demanding environments. Available with square or round bezels, with or without LED illumination, this versatile switch is built to withstand harsh conditions thanks to its robust construction and panel sealing to IP67.
Each switch includes a locknut for secure panel mounting and features either a non-spark zinc alloy body or hard-wearing moulded PBT. The non-illuminated version offers a choice of seven button colours with solder terminal connections, while the illuminated round bezel version comes with three button colours and two high-brightness LED options.
Key Features
- Wide temperature range up to 125°C for extreme conditions
- Panel sealed to IP67 for dust and water resistance
- Overboot protection against icing
- Reliable current rating of 400mA at 32VAC
- Light operating force of 3N for ease of use
Applications
Ideal for industrial, power management, automation, and process control applications, this switch is perfect for environments where reliability and durability are critical. Its small size and rugged design make it suitable for equipment panels, control systems, and machinery where space and performance are key considerations.
- Industrial applications
- Power management systems
- Automation control
- Process control equipment
- Series: 59
- Contact Configuration: SPST-NO-DB
- Switch Operation: Momentary
- Pushbutton Actuator Style: Round
- Actuator / Cap Colour: White
- Contact Current AC Max: 400mA
- Contact Voltage VAC: 32V
- Contact Current DC Max: 100mA
- Contact Voltage VDC: 50V
- IP Rating: IP67
- Switch Mounting: Panel Mount
- Switch Terminals: Solder Lug
- Illumination Colour: Non Illuminated
- Panel Cutout Diameter: 13.6mm
- Material Options: Non-spark zinc alloy or moulded PBT
- Weight: 10g
