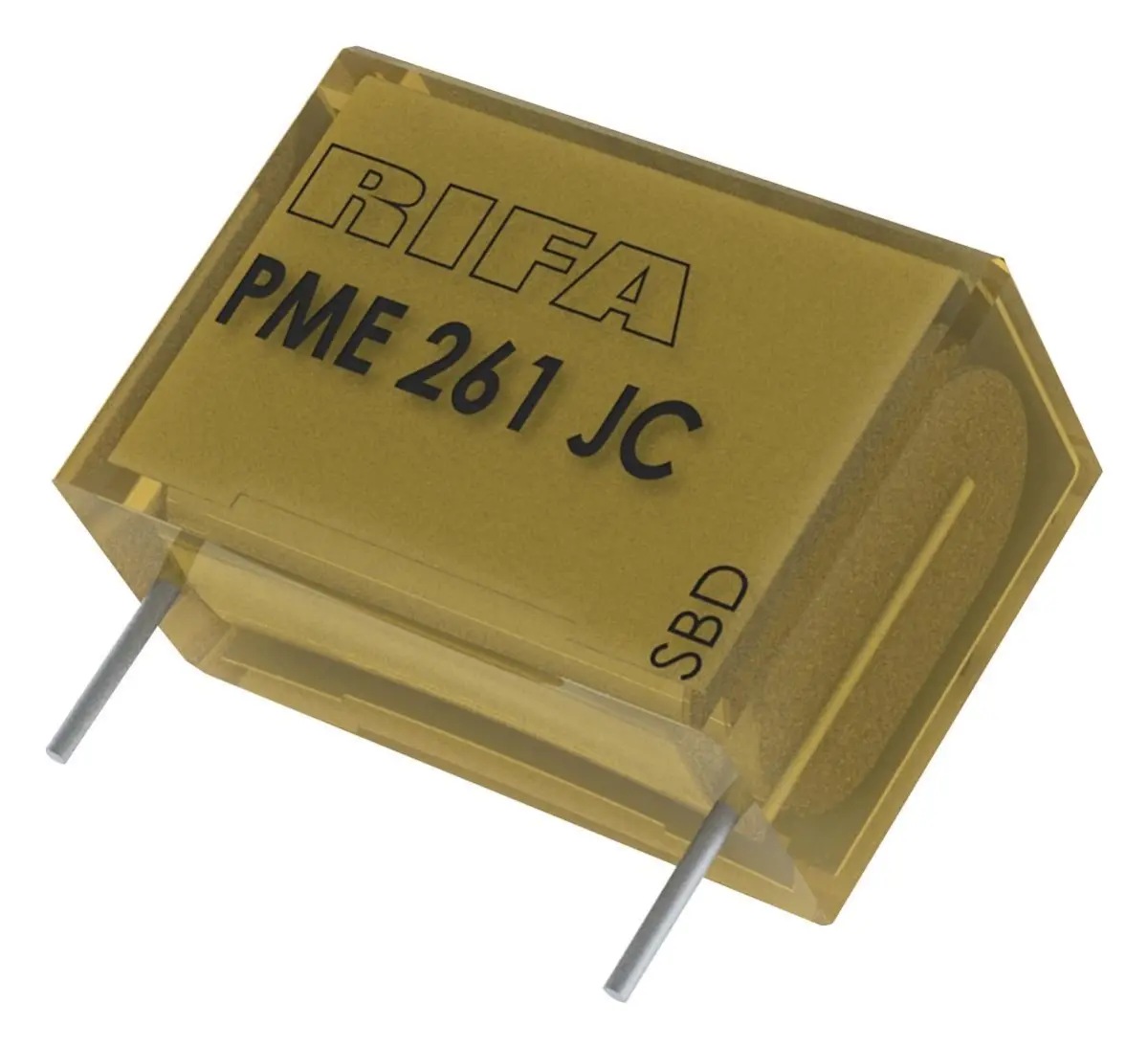

KEMET General Purpose Film Capacitor 0.1µF 500V AC 1kV DC

The KEMET General Purpose Film Capacitor from the PME261 Series is constructed from multilayer metallised paper, providing robust and reliable performance. Encapsulated and impregnated in self-extinguishing material, this component meets the stringent requirements of UL 94 V-0, ensuring safety in demanding electronic environments.

Designed for general use in DC and low frequency pulse applications, this radial box capacitor offers a capacitance of 0.1µF with a tolerance of ±10%. It operates effectively across a wide range of voltages, supporting up to 500V AC and 1kV DC. The device is also rated for varying temperature conditions, performing reliably from -40°C to +70°C in AC applications, and up to 100°C generally, making it suitable for diverse climatic categories including 40/70/56 per IEC 60068-1.

Key Specifications

• Dielectric Type: Metallised paper
• Capacitance: 0.1µF
• Capacitance Tolerance: ±10%
• Voltage (AC): 500V
• Voltage (DC): 1kV
• Capacitor Case: Radial Box - 2 Pin
• Mounting: Through hole
• Terminals: Radial leaded
• Lead Spacing: 20.3mm
• Humidity Rating: Grade II (Test Condition A)
• Operating Temperature: -40°C to 100°C

With a compact footprint of 33mm width, 43mm height, and 15mm depth, this KEMET capacitor provides an excellent balance of size and electrical capability for your circuit designs.
