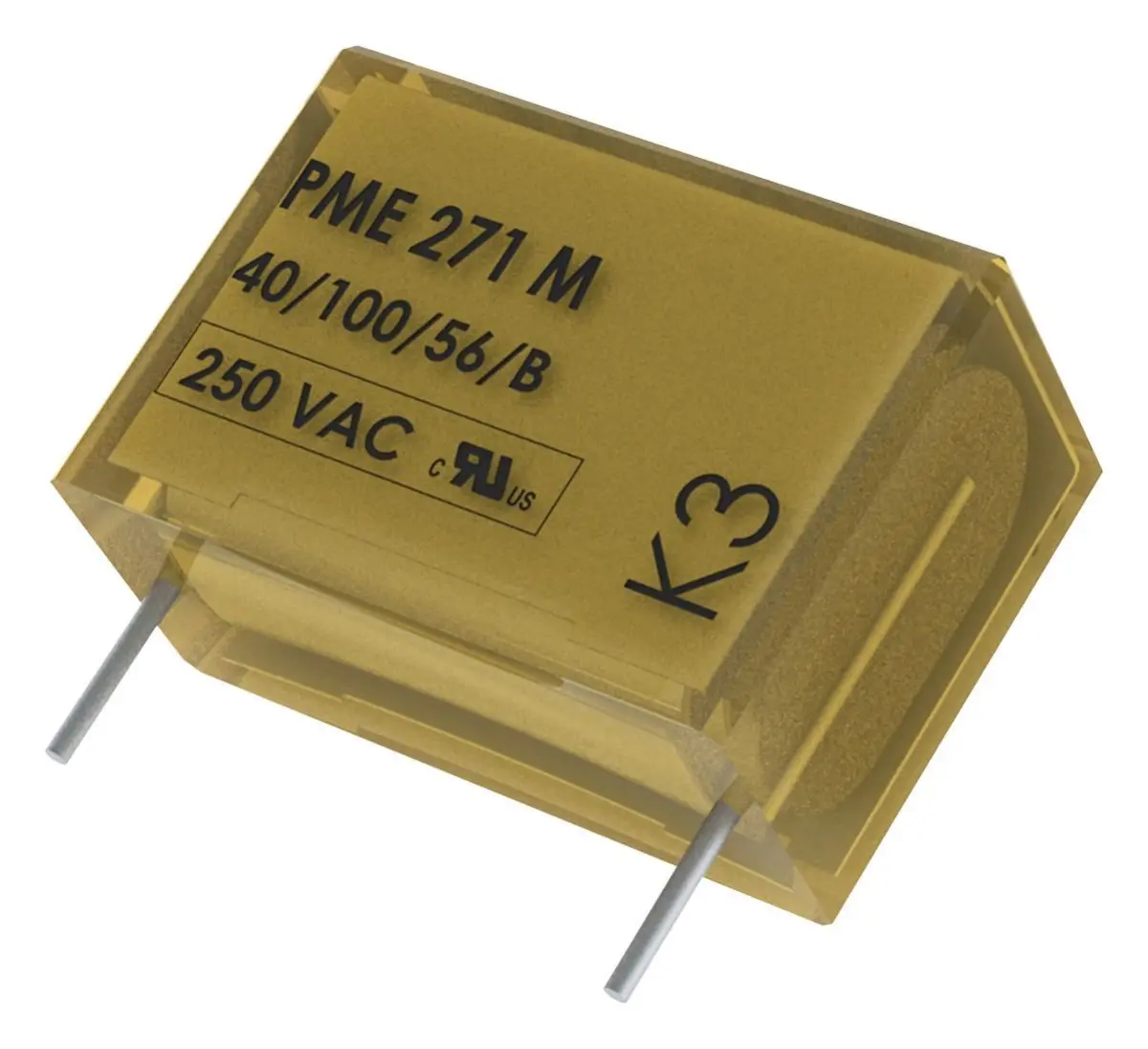

KEMET PME271M Safety Capacitor, 0.33µF, X2, 275VAC

The KEMET PME271M Safety Capacitor is a high-quality metallized paper capacitor designed for electromagnetic interference suppression in X2 and across-the-line applications. With a capacitance of 0.33µF and a tolerance of ±10%, this component ensures reliable performance in a wide range of electronic devices.

Constructed with multilayer metallized paper and encapsulated in a self-extinguishing material meeting UL 94 V–0 requirements, this capacitor offers excellent safety and durability. It is RoHS compliant with lead-free terminations, making it an environmentally friendly choice for modern electronics.

Key Features

• High dV/dt capability for robust performance
• Excellent self-healing properties for long service life
• Operating temperature range of -40°C to +110°C
• Climate category 40/110/56 per IEC 60068–1
• Lead spacing of 22.5mm for easy through-hole mounting
• Rated voltage of 275 VAC at 50/60 Hz

Applications

This capacitor is ideal for use in industrial equipment, consumer electronics, portable devices, and power management systems. It is approved to ENEC, UL, and cUL standards, ensuring compliance with international safety regulations.

Specifications

• Dielectric Type: Metallized Paper
• Capacitor Case / Package: Radial Box - 2 Pin
• Capacitance: 0.33µF
• Capacitance Tolerance: ±10%
• Suppression Class: X2
• Capacitor Mounting: Through Hole
• Voltage Rating: 275VAC
• dv/dt Rating: 400V/µs
• Humidity Rating: Grade II (Test Condition A)
• Lead Spacing: 22.5mm
• Operating Temperature Min: -40°C
• Operating Temperature Max: 110°C
• Product Range: PME271M/P276 Series

With its robust construction and high-performance specifications, the KEMET PME271M Safety Capacitor is a dependable choice for your,
