Keysight N2140A Passive Oscilloscope Probe, 200MHz, 1.3m

The Keysight N2140A Passive Oscilloscope Probe is an extremely cost-effective solution for high-quality signal measurement, offering a wide 200MHz bandwidth for accurate visualisation of electronic waveforms. It features a switchable 10:1 and 1:1 attenuation ratio, providing flexibility to match a wide range of voltage levels and measurement scenarios. This versatility, combined with a high input resistance of 10Mohm (switchable to 1Mohm), ensures minimal probe loading on the circuit under test for more reliable and precise readings.

For optimal performance, the probe can be adjusted for both low-frequency and high-frequency compensation. It is crucial to compensate the probe to match its characteristics to your specific oscilloscope, ensuring the most accurate representation of the signal. The probe is designed for compatibility with Keysight InfiniiVision Series oscilloscopes featuring a 1Mohm input.

Key Features & Specifications

• Bandwidth: 200MHz for detailed signal analysis.
• Attenuation: Switchable between 10:1 and 1:1.
• Input Resistance: 1Mohm (1:1) or 10Mohm (10:1).
• Maximum Input Voltage: 150Vrms CAT II (1:1) or 300Vrms CAT II (10:1).
• Input Capacitance: 100pF (1:1) or 15pF (10:1).
• Cable Length: 1.3 metres for convenient probing.
• Connector: BNC (Note: The BNC connector has a pin hole without a pin by design; this is not a fault).

Contents Included

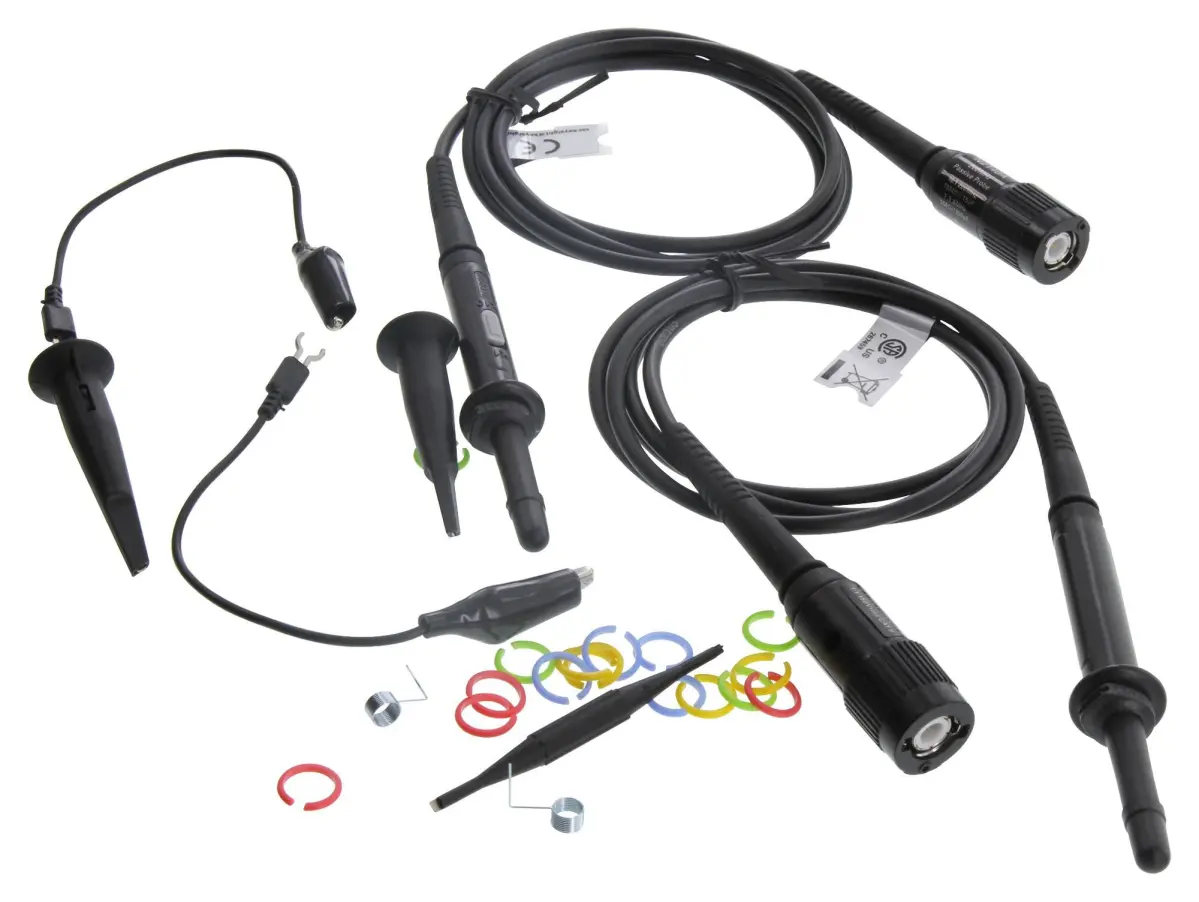

The probe kit is supplied complete with essential accessories for immediate use: 2 x passive probes, 2 x ground springs, 2 x ground leads, 1 x adjustment tool, 2 x hook tips, 1 x protective cap, and a set of 16 channel identification rings (4 rings in each of 4 colours) for clear channel assignment.
