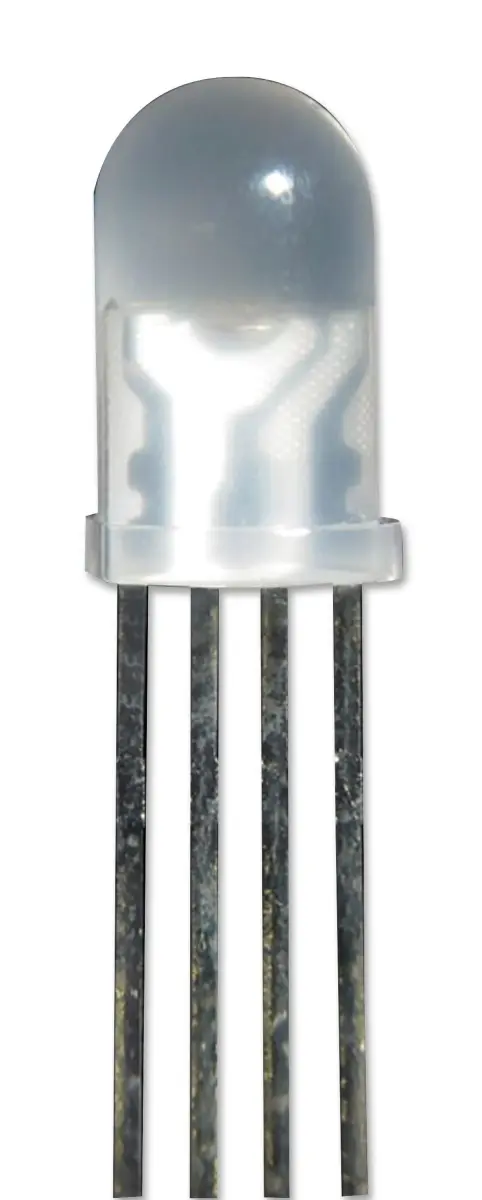

Kingbright 5mm RGB Through Hole LED Dome 60°

The Kingbright 5mm RGB Through Hole LED provides a full-colour lighting solution with a white diffused dome lens. Designed for uniform light output, this LED ensures low power consumption and long life with solid-state reliability, making it a dependable choice for various electronic applications.

This RGB LED features distinct source materials for each colour to deliver optimal performance. The hyper red element is constructed with AlGaInP on a GaAs substrate, the blue element utilises InGaN, and the green element is made with InGaN on a sapphire substrate.

Key Specifications

• Mounting: Through Hole
• Lens Shape: Dome
• Viewing Angle: 60°
• Forward Current: 20mA per colour (Hyper Red, Blue, Green)
• Hyper Red: 1.95V, 700mcd, 630nm
• Blue: 3.3V, 300mcd, 465nm
• Green: 3.3V, 1.3cd, 525nm
• Dimensions: 43mm x 33mm x 15mm

Handling Precautions

This is an ESD (Electrostatic Discharge) sensitive device. Proper precautions must be taken while handling; operators should wear anti-static bracelets and an anti-static suit when entering work areas with conductive machinery.
