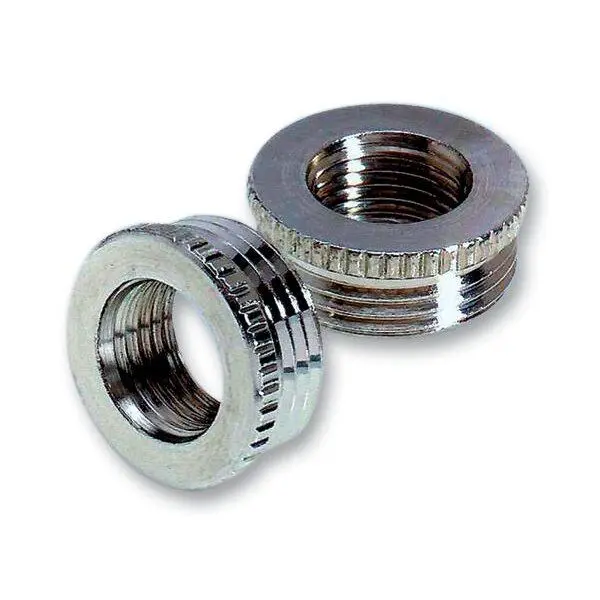

Lapp SKINDICHT Brass Reducer M25/M32 x 1.5

The Lapp SKINDICHT MR-M Series brass reduction ring (type 52104316) is a nickel-plated metric reducer that adapts cable glands with a larger outer thread to existing thread borings in machinery, devices, and housings. It features an M25 x 1.5 female to M32 x 1.5 male thread size, ensuring a secure and reliable connection with standard housing units.

This reducer is designed for use with Lapp Kabel SKINDICHT cable glands, providing a space-saving and reliable solution for industrial applications. It withstands a wide temperature range from -60 °C to +200 °C, making it suitable for demanding environments.

Key Features:

• Nickel-plated brass construction for durability and corrosion resistance.
• Converts from M32 x 1.5 male to M25 x 1.5 female thread.
• Ideal for use with SKINDICHT cable glands.
• Compact design for space-constrained installations.
• Wide operating temperature range from -60 °C to +200 °C.

Specifications:

• Component Type: Reducer
• Converts From: M32 x 1.5 Male
• Converts To: M25 x 1.5 Female
• Material: Brass (Nickel-plated)
• For Use With: Lapp Kabel SKINDICHT Cable Glands
• Product Range: SKINDICHT MR-M Series
