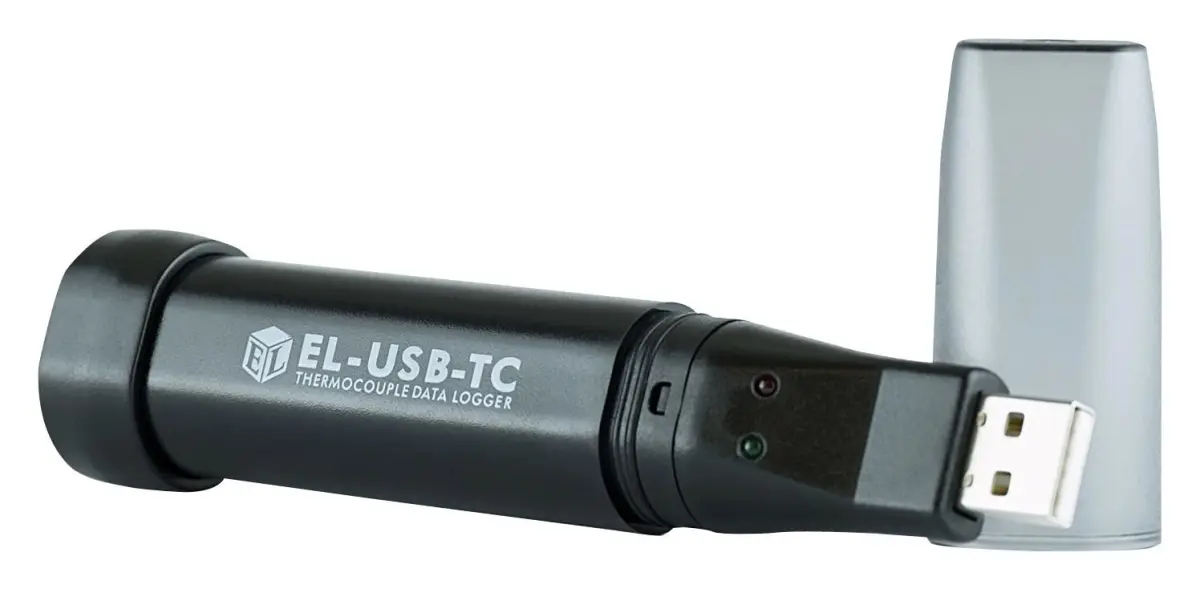

LASCAR EasyLog Thermocouple USB Data Logger

The LASCAR EasyLog Thermocouple Temperature USB Data Logger measures and stores over 32,000 temperature readings using K, J, or T type thermocouples. The thermocouple connects easily via the socket at the base of the unit, providing flexible and accurate temperature monitoring for a variety of environments.

Configuration is straightforward; simply plug the module into a PC's USB port to set up the thermocouple type, calibration, logging rate, start-time, and logging mode. The purpose-designed downloadable software allows stored data to be graphed, printed, and exported to other applications. The device features two user-programmable alarm thresholds with bright red and green LED indications for immediate status recognition.

Designed for long-term use, the data logger is supplied with a replaceable long-life lithium battery that can typically allow logging for up to 3 years. It is also protected against moisture, ensuring reliable operation in demanding conditions. With compact dimensions of 43 mm in height, 33 mm in width, and 15 mm in depth, and weighing just 10 grams, it is highly portable and easy to install.

Key Features

• Measures and stores over 32,000 temperature readings
• Compatible with K, J, and T type thermocouples
• USB interface for simple set-up and data download
• Two user-programmable alarm thresholds with LED indication
• Variable logging rates (1s, 10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
• High and low alarms with configurable start date and time
• Moisture protection for reliable performance
• Replaceable internal lithium battery offering up to 3 years of logging

Supplied With

• Data Logger
• 1.5m K-type Thermocouple Probe
• ½ AA Battery
• Wall Mount Clip
