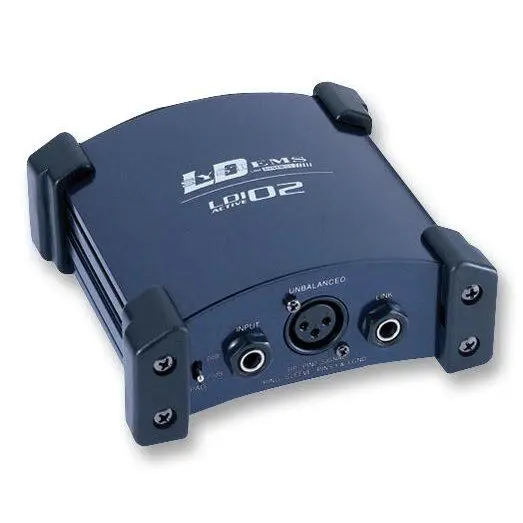

LD Systems Active DI Box Silver-Blue Metallic

The LD Systems Active DI Box is a robust and reliable solution for audio signal routing, housed in a sturdy, silver-blue metallic aluminium and steel casing equipped with corner protectors for enhanced durability. This active direct injection box is designed to deliver exceptional audio clarity, boasting an impressive frequency response of 20Hz to 200kHz and extremely low total harmonic distortion (THD < 0.05% at 1kHz).

Featuring a highly practical LED indicator, the unit blinks during normal operation and remains continuous when switched off. It also includes a ground lift switch to eliminate unwanted hum and buzz, ensuring a clean signal. The DI box automatically switches off when phantom power is applied, and its extremely low battery usage ensures longevity during extended sessions. It operates on a 9V PP3 battery, which is not supplied.

Connectivity and Specifications

• Inputs: 6.35mm (1/4”) Mono Jack and XLR
• Outputs: 6.35mm (1/4”) Mono Jack and XLR
• Maximum Input Level: +10/+30dBu
• Input Impedance: > 1MΩ
• Load Impedance: < 100Ω
• Noise Level: -110dBu

With its compact dimensions of 43 mm in height, 33 mm in width, and 15 mm in depth, and weighing just 678 grams, this DI box is perfectly suited for both studio environments and live performances where space and portability are essential.
