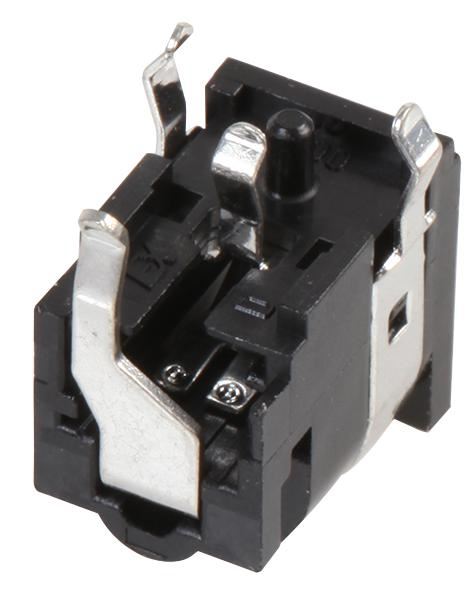

LUMBERG DC Power Socket, 5.9/3/1.05mm, JSBJ4, 2A 13.5V
High-quality LUMBERG DC power socket (JSBJ4) for PCBs, 5.9/3/1.05mm, 2A 13.5V, industrial use.
The LUMBERG DC Power Socket is a robust and reliable power supply chassis socket designed according to JEITA RC-5320A JSBJ4 standards. This angular version features a break contact and is suitable for mounting on printed circuit boards, ensuring seamless integration into various electronic applications.
Constructed with high-quality materials, this power socket boasts an insulating body made of PBT (V0-rated according to UL 94 for flame resistance) and features tin-plated contacts for excellent conductivity and durability. The socket is designed to mate with power supply plug 1636 04, making it a versatile component for power management and industrial applications.
Key Features:
- Material Quality: Insulating body (PBT), tin-plated contact pin (CuSn), and durable frame spring (CuZn).
- Reliable Performance: Temperature range of -20°C to 70°C ensures stable operation in varying environments.
- Precision Fit: Barrel outer diameter of 5.9mm, inner diameter of 3mm, and a 1.05mm centre hole for secure connections.
- Easy Installation: Through-hole mount soldering termination simplifies PCB assembly.
- Applications: Ideal for use in power management systems and other industrial electronic setups.
This component is a vital part of any power supply setup, offering durability, efficient performance, and compatibility with standardised power plugs.
- Power management systems
- Industrial electronics
- Printed circuit boards (PCBs)
- Compliance: JEITA RC-5320A JSBJ4
- Gender: Jack
- Insulating Body: PBT (UL 94 V0-rated)
- Contact Pin: Tin-plated CuSn
- Contact Spring: Tin-plated Cu alloy
- Frame Spring: Tin-plated CuZn
- Temperature Range: -20°C to 70°C
- Current Rating: 2A
- Voltage Rating: 13.5V
- Pin Diameter: 1.05mm
- Connector Mounting: Through Hole
- Contact Termination Type: Solder
- Barrel Inner Diameter: 3mm
- Barrel Outer Diameter: 5.9mm
- Centre Hole Diameter: 1.05mm
- Compatible Plug: 1636 04
