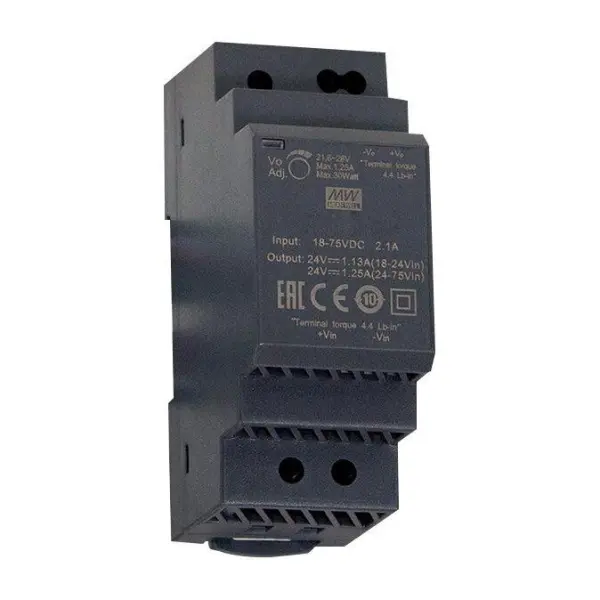

MEAN WELL DDR-30 24V 30W DIN Rail DC-DC Converter

The MEAN WELL DDR-30 Series is a 30W DIN Rail mount DC-DC converter, engineered for reliable performance in demanding industrial and railway applications. With an ultra-slim width of just 17.5mm (1SU), this converter saves valuable cabinet space while delivering a stable 24V output at 1.25A.

Featuring a 4:1 ultra-wide input range (18-75V DC), the DDR-30 operates flexibly across various input voltages. It supports a wide operating temperature range from -40°C to +85°C, ensuring dependable function in extreme environments. The unit requires no minimum load, and its output voltage is adjustable by ±10%, providing additional versatility for your specific needs.

Protection and Safety

Built-in protective functions include short circuit, overload, over voltage, input reverse polarity, and input under voltage protection. The converter offers 4kVdc I/O isolation (reinforced), enhancing safety and system reliability in sensitive installations.

Installation and Cooling

Designed for easy installation on DIN rails TS-35/7.5 or 15, this converter is cooled by free air convection without the need for a fan, reducing maintenance and noise. Its compact dimensions (40mm height, 30mm width, 25mm depth) and lightweight construction (120g) make it an ideal power solution for control panels and rail applications.

The MEAN WELL DDR-30 combines high efficiency, robust protection, and a space-saving format, making it a dependable choice for professionals seeking a quality DC-DC conversion solution.
