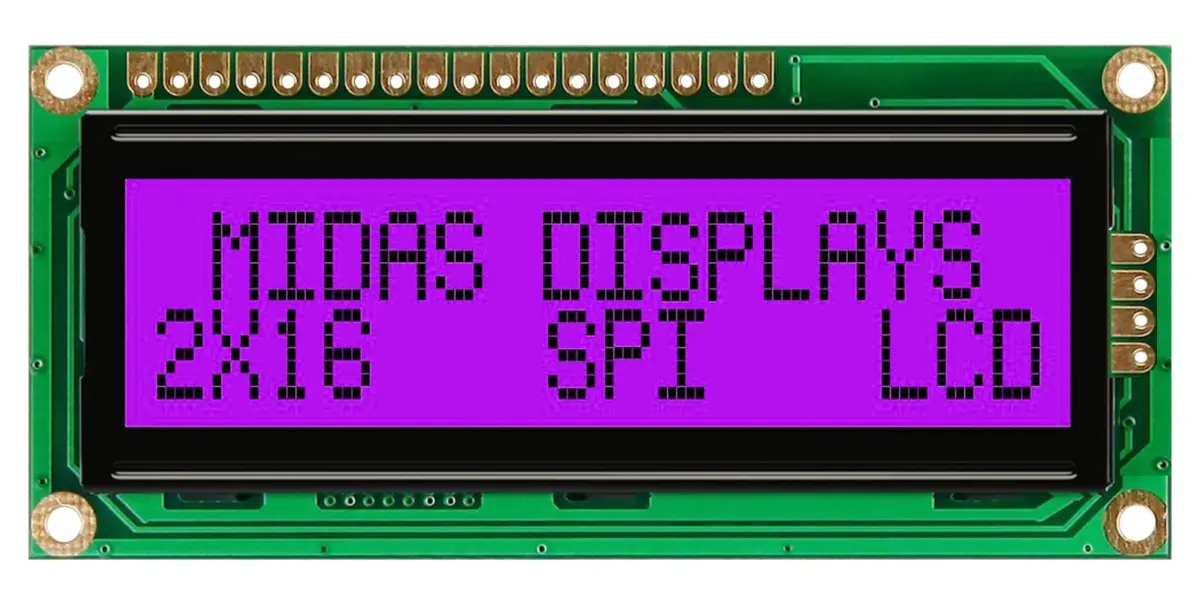

MIDAS DISPLAYS 16x2 LCD Display Module, Black on RGB, 5V SPI
- SKU
- C3-SC19837
- EAN
- 3562104152612
16x2 FSTN LCD Display Module by MIDAS DISPLAYS. Features SPI interface, 5V logic, RGB LED backlight, and -20°C to 70°C temp range.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Free UK deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- 30-day returnsUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
Documents
- For electronic projects
- For microcontroller interfaces
- For indoor applications
- For outdoor applications
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Character Count: 16 x 2
- Display Appearance: Black on RGB
- Logic Voltage: 5V
- Interface Type: SPI
- LCD Display Type: FSTN Positive
- Display Mode: Transflective
- Display Construction: COB
- Backlighting Colour: RGB LED
- Font Set: English, Japanese
- View Direction: 6 O'Clock
- Duty: 1/16
- Module Dimensions: 80 x 36 x 13.5mm
- View Area: 66 x 16mm
- Active Area: 56.20 x 11.5mm
- Dot Size: 0.5 x 0.65mm
- Dot Pitch: 0.60 x 0.70mm
- Character Size: 2.95 x 5.55mm
- Character Pitch: 3.55 x 5.95mm
- Operating Temperature: -20°C to 70°C
- Product Height: 43mm
- Product Width: 33mm
- Product Depth: 15mm
- Weight: 40 grams
- Line: 16 x 2
- Module Size: 80mm x 36mm
- Operating Temperature Min: -20°C
- Operating Temperature Max: 70°C
- SVHC: No SVHC (25-Jun-2025)
