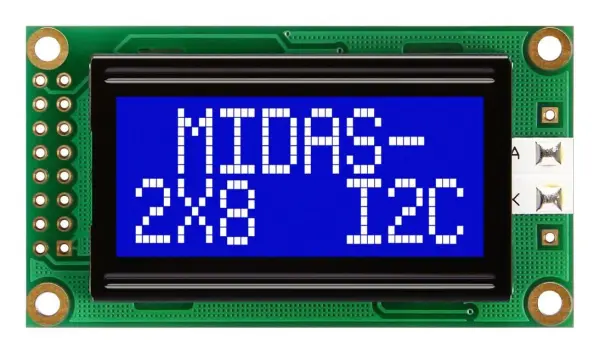

MIDAS DISPLAYS MC20805A6W 8x2 LCD Module, White on Blue, 5V I2C

The MIDAS DISPLAYS MC20805A6W-BNMLWI-V2 is a high-quality, chip-on-board (COB) alphanumeric LCD module designed for clear data display in a compact format. Featuring an 8-character by 2-line configuration, this module utilises a Super Twisted Nematic (STN) negative mode transmissive display to produce crisp white characters on a distinctive blue background, ensuring excellent legibility.

Equipped with a bright white LED backlight, the display remains easily readable in various lighting conditions. It is engineered for simple integration into electronic projects, boasting a convenient I2C serial interface that minimises the required connection pins. The module operates on a standard 5V DC driving voltage, making it compatible with a wide range of microcontrollers and development boards, such as Arduino and Raspberry Pi.

Constructed using robust chip-on-board technology, the module offers enhanced reliability and a streamlined profile. It features a 16-pin Dual In-Line (DIL) connector on the left side for straightforward mounting and connection. With an operating temperature range of -20°C to +70°C, it is suitable for use in diverse environments, from industrial controls to hobbyist projects.

The module's compact overall dimensions of 58mm x 32mm x 13.2mm house a generous 38mm x 16mm viewing area, with each character standing 5.56mm tall for clear visibility. It supports English and Japanese font sets, adding to its versatility for international applications. This display is an ideal solution for imaging systems, video vision equipment, instrumentation panels, and any application requiring a reliable, easy-to-read alphanumeric interface.
