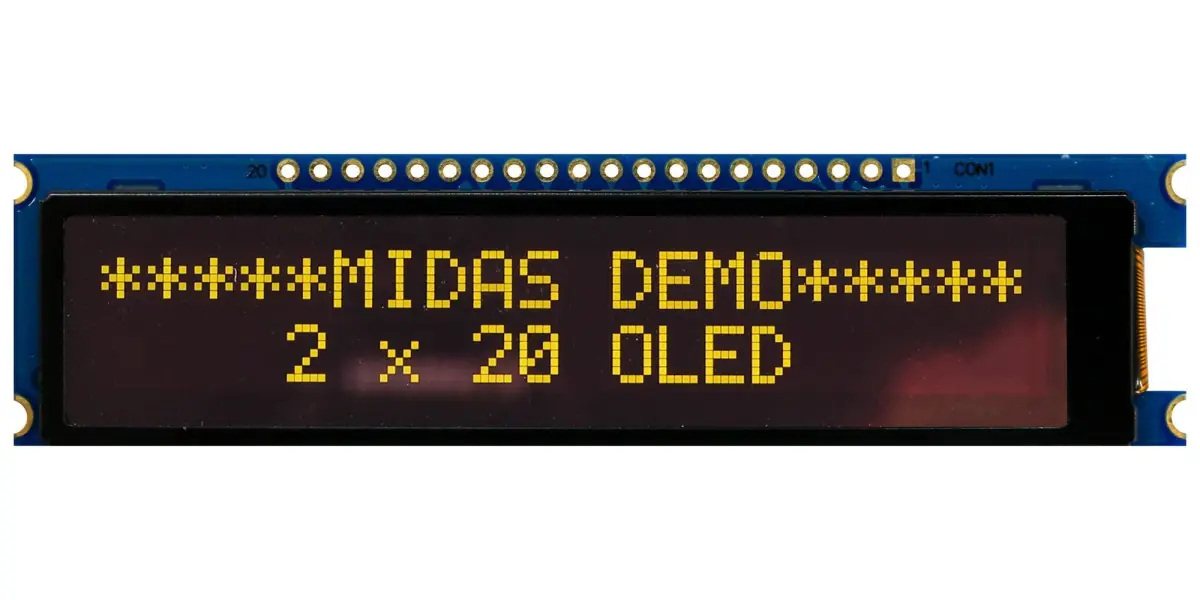

MIDAS DISPLAYS OLED Display Module 20x2 Yellow on Black

The MIDAS DISPLAYS OLED Display Module offers a clear and efficient visual interface for your electronic projects. Featuring a 20x2 character display, this module presents information in a vibrant Yellow on Black colour scheme, ensuring high contrast and excellent readability in various lighting conditions. The passive matrix display mode utilises the SSD1311 IC to deliver reliable performance.

This versatile module supports multiple interface options, including 6800, 8080, SPI, and I2C, providing flexibility for integration into different system architectures. It operates on a logic voltage of 3.3V and includes a comprehensive font set covering English, Cyrillic, Euro, and Japanese characters, making it suitable for diverse global applications.

Designed for durability, the module functions reliably across a wide operating temperature range from -40°C to 80°C. Its compact form factor and Chip-on-Board (COB) construction make it ideal for space-constrained designs.

Key Specifications

• Character Count: 20 x 2
• Display Appearance: Yellow on Black
• Active Area: 73.52 x 11.52 mm
• Module Dimensions: 92.3 x 23.3 x 7 mm
• Logic Voltage: 3.3V
• Duty: 1/16
• Operating Temperature: -40°C to 80°C

Whether you are developing industrial instrumentation or consumer electronics, this OLED display module provides a robust and clear display solution.
