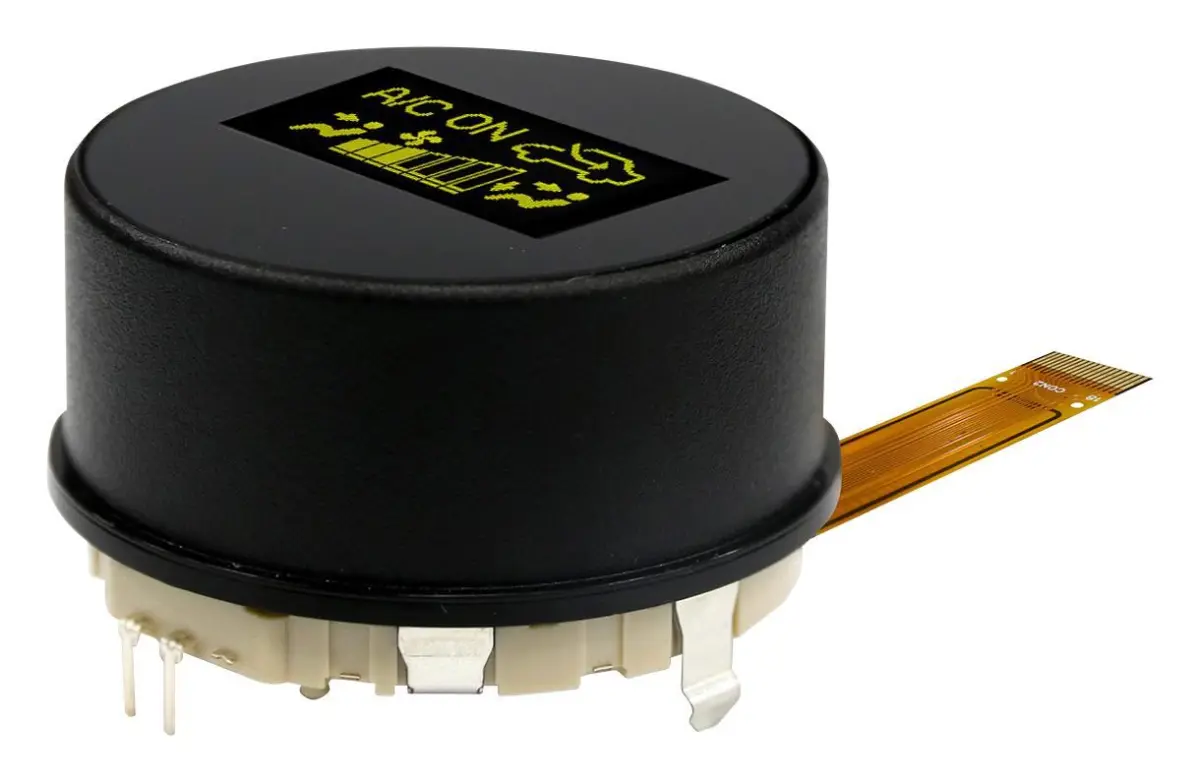

MIDAS DISPLAYS Graphic OLED Rotary Switch 0.96in 128x64 Yellow/Black 3V

The MIDAS DISPLAYS Graphic OLED Rotary Switch offers a compact and highly functional display solution, featuring a 0.96-inch screen with a 128 x 64 pixel resolution. Designed with a striking Yellow on Black display appearance, this OLED module ensures clear and vibrant visual output for your electronic projects.

This module integrates a Capacitive Touch Panel (CTP) Dial, combining display and rotary input functionalities into a single, space-saving component. Driven by the reliable SSD1306 controller IC, it supports both 4-Wire SPI and I2C interfaces, providing flexibility for system integration. Operating at a logic voltage of 3V, it is well-suited for low-power applications.

Key Specifications

• Dot Matrix: 128 x 64
• Active Area: 21.74 x 10.86 mm
• Dot Size: 0.148 x 0.148 mm
• Dot Pitch: 0.17 x 0.17 mm
• Display Mode: Passive Matrix
• Duty: 1/64

Built to withstand various environmental conditions, the display operates reliably within a temperature range of -20°C to 70°C. Its circular module dimension of Ø39.4 x 24.8 mm makes it an ideal choice for applications requiring a round, intuitive interface. Whether you are developing consumer electronics, industrial control panels, or embedded systems, this OLED rotary switch provides a versatile and high-quality user interface component.
