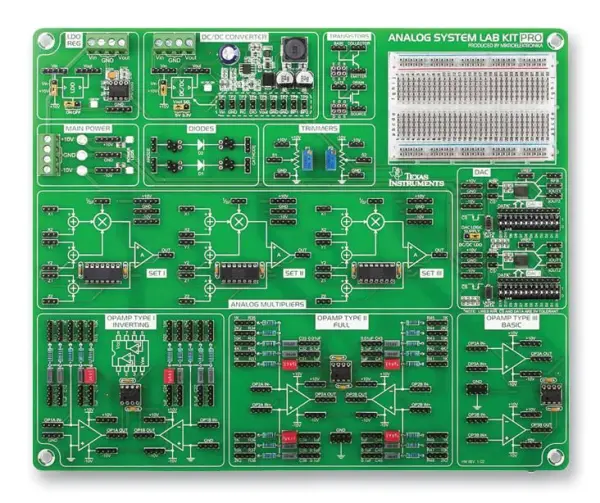

MIKROELEKTRONIKA Analogue System Lab Kit ASLK PRO

The MIKROELEKTRONIKA Analogue System Lab Kit (ASLK PRO) is designed for undergraduate engineering students to explore and perform analogue laboratory experiments. This comprehensive platform serves as a cost-effective test bed, enabling students to design and implement a wide range of analogue systems using general purpose integrated circuits (ICs) such as operational amplifiers (op-amps) and analogue multipliers.

Equipped with three general purpose TL082 operational amplifiers and three wide bandwidth precision MPY634 analogue multipliers from Texas Instruments, this kit provides the essential building blocks for analogue circuit development. It also includes two 12-bit parallel input multiplying digital-to-analogue converters (DAC7821), a wide input non-synchronous buck-type DC/DC controller (TPS40200), and a low dropout regulator (TPS7250) from Texas Instruments.

A portion of the ASLK PRO board is left for general purpose prototyping, allowing students to undertake mini projects and custom experiments. The kit offers provision to connect a ±10V DC power supply and is compatible with simulation software such as TINA, Pspice, FilterPro (for analogue filter design), and SwitcherPro (for power supply design).

This lab kit is ideal for hobby, education, and embedded design development applications. The package includes the ASLK PRO board in an antistatic bag, wire jumpers, transistors, diodes, user manual, schematic, and a graph paper book, ensuring you have everything needed to start experimenting immediately.
