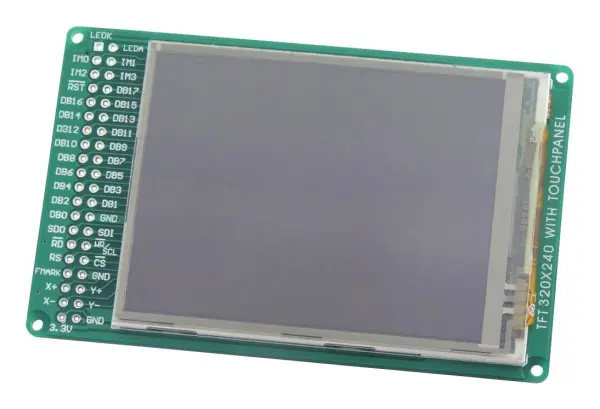

MIKROELEKTRONIKA TFT LCD PROTO Board 2.8-inch 320x240 QVGA

The MIKROELEKTRONIKA TFT LCD PROTO Board integrates a high-quality 2.8-inch TFT colour display, providing a powerful development tool for creating advanced graphical embedded applications. This board features the MI0283QT-9A display module with a sharp 320 x 240 pixel QVGA resolution and is driven by the capable ILI9341 display controller.

Engineered for versatility, the display is capable of showing up to 262,000 RGB colours, ensuring vibrant and detailed visual output for user interfaces, data visualisation, or system status monitoring. A key feature is the integrated 4-wire resistive touch panel, which transforms the display into a functional input device, enabling interactive control for your projects.

Key Features and Specifications

The board is designed for a 3.3V logic supply, with a separate 5V input recommended for optimal TFT backlight brightness. It offers flexible interfacing options through both parallel and SPI interfaces, connected via a standard 40-way DIL pinout for easy integration into breadboards or custom PCBs. The compact module size of 88.5mm x 55.3mm makes it suitable for space-constrained designs.

With an operating temperature range of -20°C to 70°C, this display module is robust enough for use in a variety of environments. The PROTO board layout provides direct access to the 8 data lines and 5 control lines, giving developers full control over the display for efficient and customised driver implementation.

Ideal Applications

This tool is perfect for prototyping and developing embedded systems that require a user-friendly graphical interface. It is commonly used in DIY electronics, robotics control panels, industrial instrumentation, smart home device interfaces, and educational projects where interactive display functionality is essential.

By combining a high-resolution colour TFT with a responsive touchscreen in a single, easy-to-use package, the MIKRO
