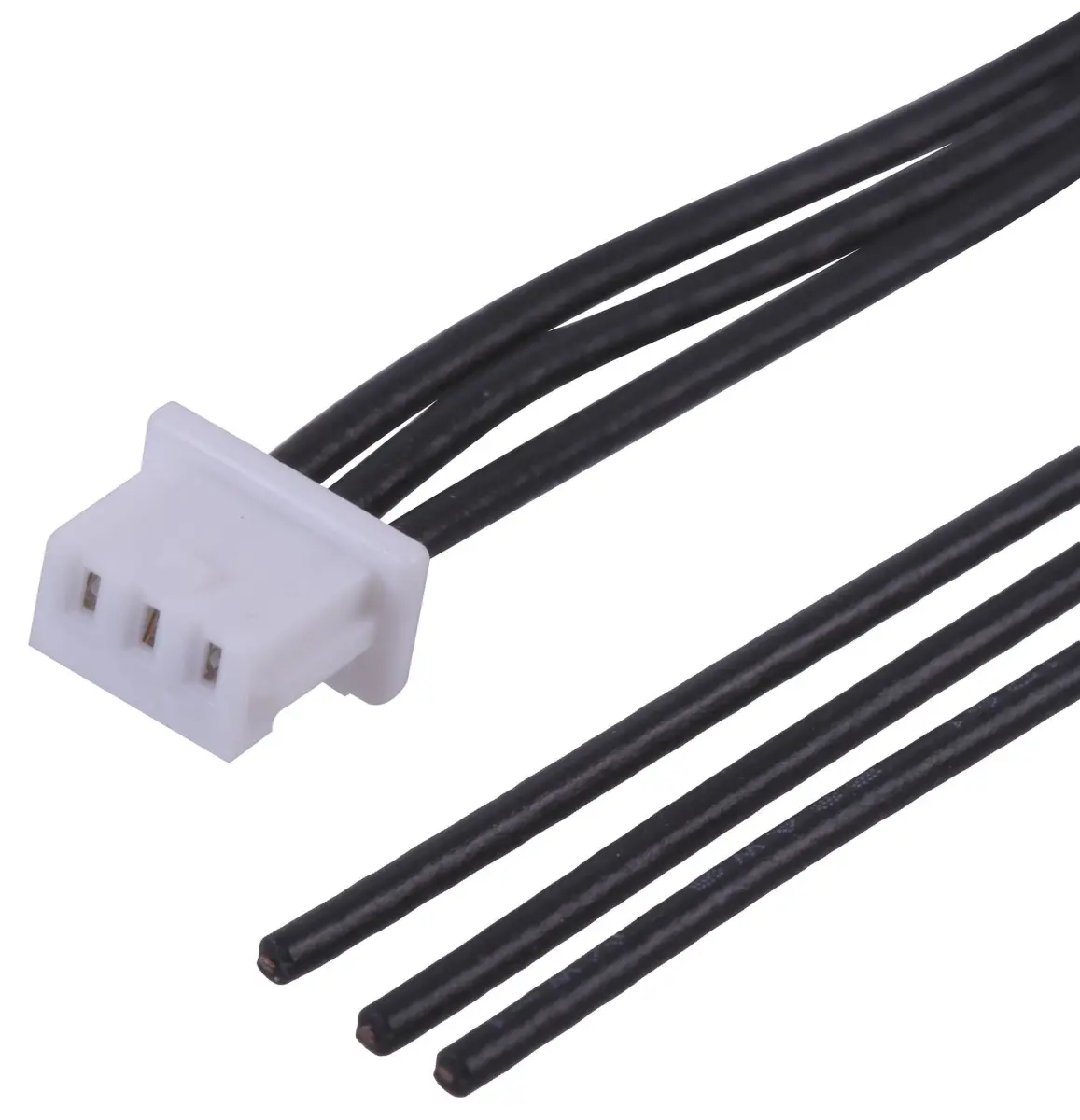

MOLEX 3 Pole PicoBlade Socket to Bare End Lead, 1.25mm Pitch - 150mm

The MOLEX 3 Pole PicoBlade Socket to Bare End Lead is a precision-engineered three-way cable assembly designed for reliable, fine-pitch connectivity in demanding electronic applications. Part of the renowned PicoBlade series, this lead features a factory-terminated socket on one end, ensuring consistent contact and maximum reliability, while the opposite end provides bare, stripped wires for flexible custom installation and soldering.

With a compact 1.25mm pitch, this connector system is ideal for space-constrained designs where maintaining signal integrity in a small footprint is critical. The factory-crimped termination process guarantees a secure and durable connection for each of the three poles, significantly reducing the risk of wiring errors, poor contacts, or failures that can occur with manual assembly. This makes it an excellent choice for both prototyping and volume production where consistency is paramount.

Constructed from high-quality materials, the lead offers excellent electrical performance and mechanical durability. The flexible cable allows for easy routing within enclosures and equipment, accommodating various installation layouts. This component is a fundamental building block for creating internal wiring harnesses, connecting PCBs to peripherals, or extending existing cable runs in a wide array of electronic devices.

Key Features & Benefits

• Factory Termination: Ensures high reliability and consistent performance for fine-pitch applications, eliminating variability from manual crimping.
• Fine-Pitch Design: The 1.25mm pitch is perfect for compact and densely packed electronic assemblies.
• Three-Pole Configuration: Supports the transmission of multiple signals or power lines within a single, organised cable.
• Versatile Connection: The socket end mates seamlessly with PicoBlade headers, while the bare wire end offers ultimate flexibility for direct soldi

Variant Details

• Size: 150mm
