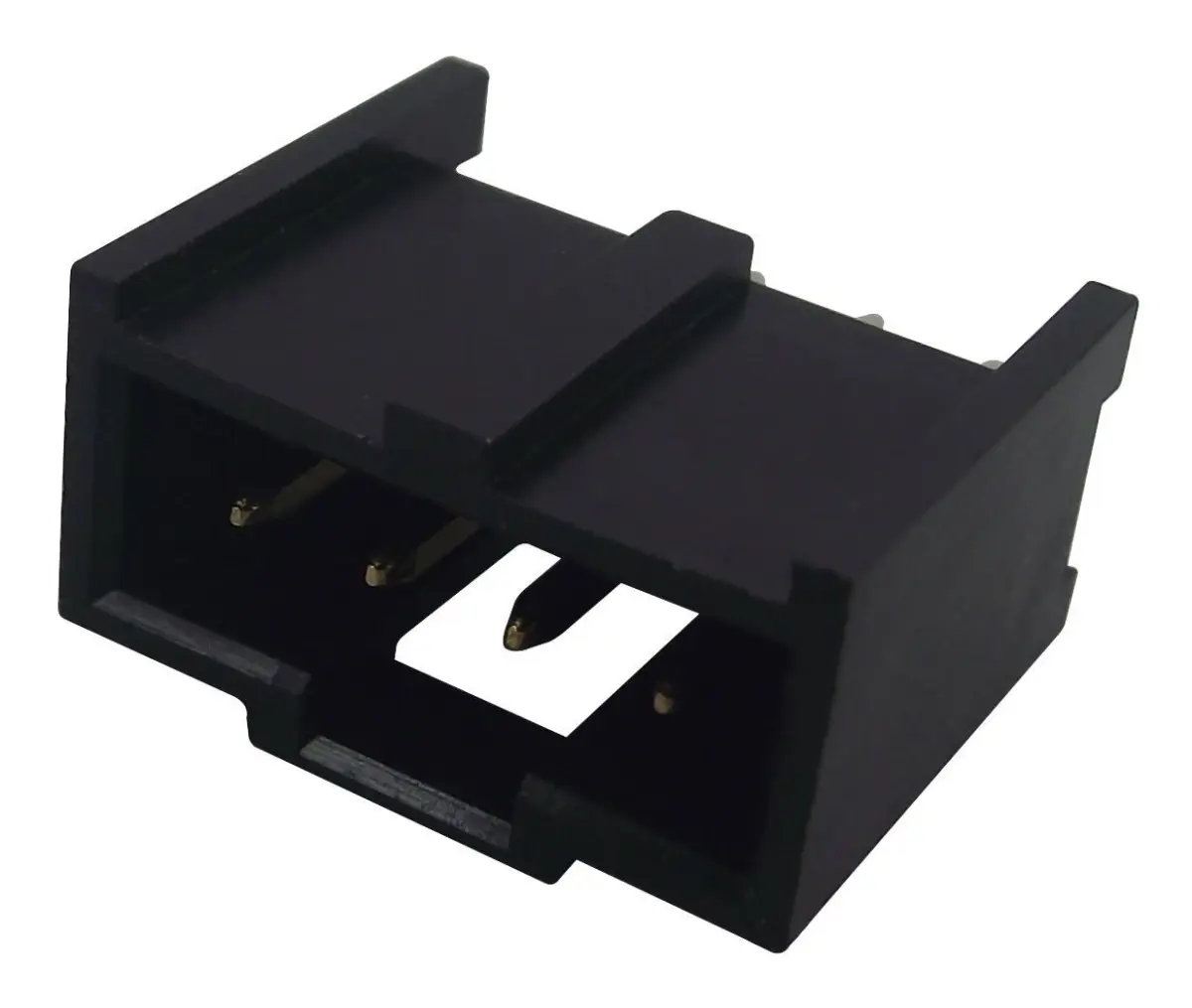

MOLEX C-Grid III Vertical PCB Header - 4 way

The MOLEX C-Grid III Vertical PCB Header is a premium-grade, single-row connector designed for reliable signal and wire-to-board applications. Constructed from high-temperature polyester with a UL94V-0 flammability rating, this header is built to endure demanding environments within an operating temperature range of -55°C to +125°C. Its robust design features gold-plated brass contacts ensuring excellent conductivity and corrosion resistance, with a current rating of 3A per contact and a 350V AC/DC voltage rating.

This 2.54mm pitch header is part of Molex's innovative C-Grid III interconnection system, offering exceptional design flexibility and modularity. The unique box contact design employs a uniform mating concept across all termination techniques, while a standardised locking system on all contacts guarantees full interchangeability between different housing styles. This header is fully compatible with the industry-standard DIN41651 and French HE-13/14 norms.

A key feature is its high versatility and full intermateability with Molex's QF-50 product range. The vertical header accepts both discrete wire and ribbon cable connectors, mating seamlessly with compatible 90147 C-Grid® PC board connectors and 90123 C-Grid III™ modular crimp housings. Its through-hole termination provides a secure and durable connection for printed circuit boards, making it a trusted component in professional electronics assembly.

Typical Applications

This connector is ideally suited for a broad spectrum of electronic applications where reliable, modular connections are paramount. It is commonly specified in commercial vehicle electronics, consumer electronics, and various industrial control systems. Its robust construction and industry-standard compliance make it a go-to choice for engineers seeking a dependable and flexible interconnect solution.

Variant Details

• Style: 4 way
