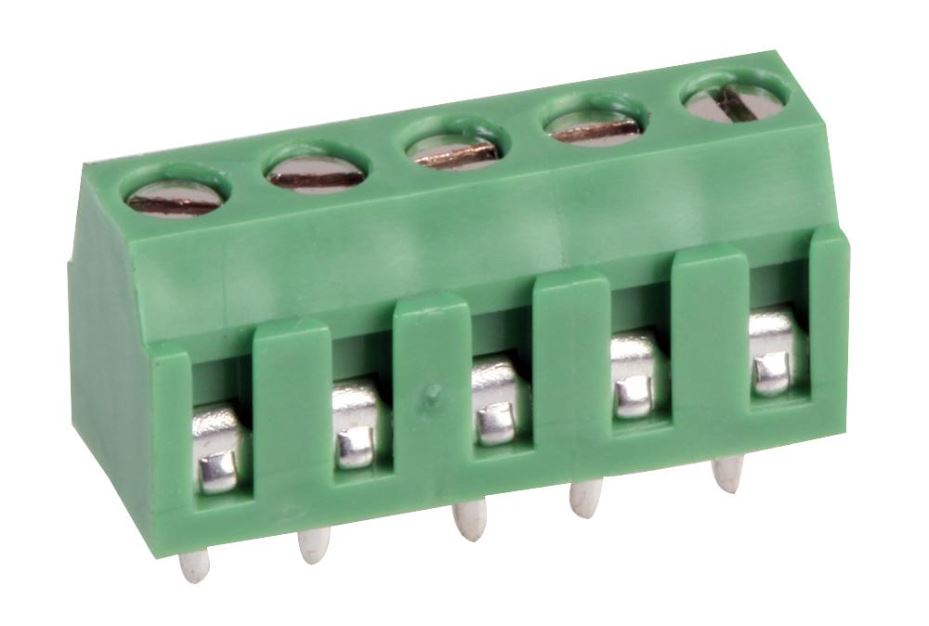

MULTICOMP PRO 5-Way 3.81mm PCB Terminal Block, Screw Connector
Secure MULTICOMP PRO 5-way PCB terminal block with screw connection, 16-26AWG, for industrial and PCB applications.
The MULTICOMP PRO 5-Way 3.81mm PCB Terminal Block provides a reliable and efficient solution for secure wire-to-board connections. Featuring tin-plated brass terminals and a durable green polyamide 66 insulating body, this terminal block ensures optimal conductivity and safety for electrical applications.
Designed for versatility, it accepts wire gauges from 26AWG to 16AWG and offers a screw-type wire connection for secure fastening. Its through-hole right-angle orientation makes it ideal for compact PCB layouts, ensuring easy integration into various electronic designs.
Key Features
- Wire Size Range: 26AWG to 16AWG
- Rated Current: 10A
- Rated Voltage: 300V
- Pitch Spacing: 3.81mm
- Operating Temperature: -55°C to +105°C
- Insulation Resistance: >2000MΩ
- Wire Strip Length: 4mm to 5mm
Applications
- Industrial equipment
- PCB-mounted wiring
- Control panels
- Automation systems
Market demand for this product may affect lead times, and delivery schedules could fluctuate.
- Industrial applications
- Electronic control systems
- Printed circuit boards (PCBs)
- Control panels
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Terminal Material: Tin-plated brass
- Insulating Body: Polyamide 66 (green)
- Pitch Spacing: 3.81mm
- Number of Positions: 5
- Wire Gauge: 26AWG (min), 16AWG (max)
- Connection Type: Screw
- Rated Current: 10A
- Rated Voltage: 300V
- Block Orientation: Through-hole right angle
- Operating Temperature: -55°C to +105°C
- Insulation Resistance: >2000MΩ
- Wire Strip Length: 4mm to 5mm
- Weight: 900g
