Multicomp Pro MX 8-Way Push-In Terminal Block, 2.54mm Pitch
Industrial-grade 8-way PCB terminal block with push-in connection, 2.54mm pitch for 20-26AWG wires.

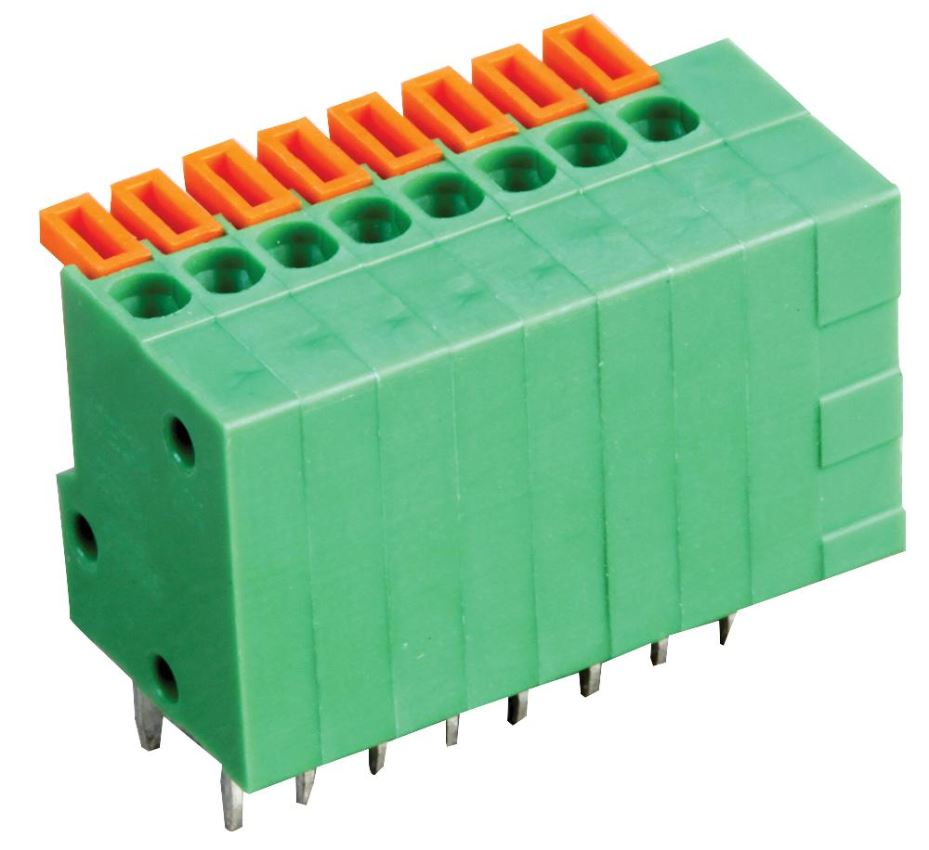

The Multicomp Pro MX 8-Way Push-In Terminal Block is designed for reliable electrical connections in industrial applications. Featuring a green polyamide 66 insulating body with an orange polyamide 66 lever, it ensures both durability and visibility. The tin-plated brass terminal and stainless steel spring provide excellent conductivity and secure wire retention.
With a push-in wire connection method, installation is quick and tool-free. The through-hole right-angle block orientation allows for compact and efficient PCB mounting. This terminal block supports wire sizes from 26AWG to 20AWG, making it versatile for various wiring needs.
Key Specifications
- Pitch Spacing: 2.54mm
- No. of Ways: 8
- Wire Size Range: 26AWG to 20AWG
- Rated Current: 6A
- Rated Voltage: 150V
- Block Orientation: Through Hole, Right Angle
- Insulation Resistance: >2000MR at 500VDC
- Operating Temperature Range: -40 to 105°C
This terminal block is ideal for industrial applications requiring secure and reliable wire-to-board connections.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
Technical Specifications
- Industrial control panels
- PCB mounting applications
- Compact electrical assemblies
- Wiring harnesses
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Material: Polyamide 66 body, tin-plated brass terminal, stainless steel spring
- Terminal Configuration: 8 way
- Pitch Spacing: 2.54mm
- Wire Size Supported: 26AWG to 20AWG
- Wire Connection Method: Push In
- Rated Current: 6A
- Rated Voltage: 150V
- Block Orientation: Through Hole Right Angle
- Insulation Resistance: >2000MR at 500VDC
- Operating Temperature Range: -40 to 105°C
- Weight: 60 grams
