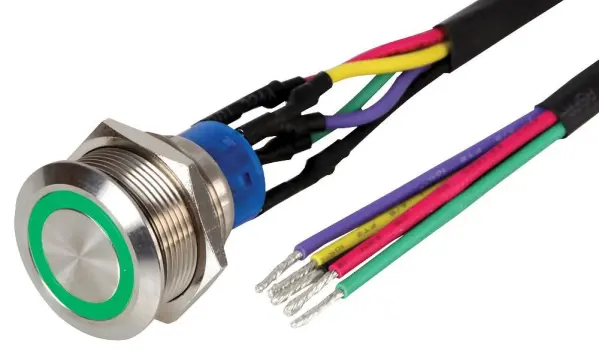

MULTICOMP PRO SPST Momentary Push Button Switch, 12V LED Illumination - Green

The MULTICOMP PRO SPST Momentary Push Button Switch is a robust, professional-grade panel-mounted component designed for industrial and electronic control applications. This switch features a momentary spring return action, ensuring reliable, temporary contact for control circuits. The unit is illuminated by a bright 12V LED, providing clear visual feedback of its operational status, which is essential in low-light conditions or complex machinery setups.

Built to withstand demanding environments, this 22mm switch boasts an impressive IK10 and IP67 rating, offering high protection against mechanical impacts and complete ingress protection from dust and temporary immersion in water. Its construction utilises premium materials: the bushing is crafted from stainless steel for corrosion resistance, the base is made from flame-retardant PBT and PC, and the actuator combines polycarbonate with stainless steel for durability. An internal silicone seal and O-ring ensure the switch maintains its integrity in challenging conditions.

Electrical performance is assured with a silver-plated copper contact system, rated for up to 3A DC or 5A AC at 250V. The switch comes with pre-tinned wire leads measuring 500mm for straightforward connection, and it secures to the panel with a nickel-plated brass hex nut. The flat-button actuator style offers a modern, professional appearance suitable for a wide range of control panels and interfaces. This reliable switch is a cornerstone component for building safe, visible, and durable control systems in industrial automation, machinery, and bespoke electronic projects.
