Multicomp Pro Thermal Switch NO 40°C 16A
Multicomp Pro thermal switch, normally open, 40°C set point, 16A rating. Ideal for HVAC and industrial temperature control.

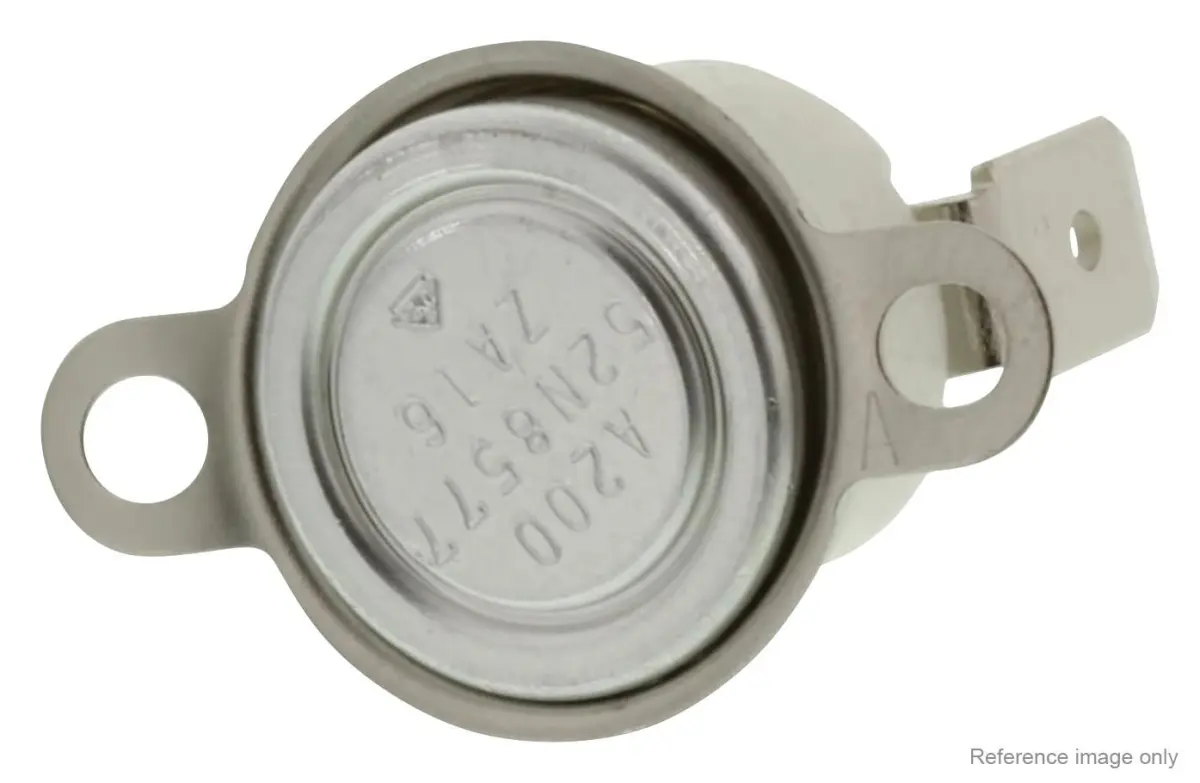

The Multicomp Pro Thermal Switch is a precision snap-action thermostat designed to regulate system or environmental temperature by sensing changes at a target of 40°C. When the temperature rises to the set point, the switch closes (normally open contact) to activate heating or cooling systems, ensuring optimal thermal management in a wide range of applications.
This automatic reset thermostat features a robust phenolic housing and shield material, with a height of 12mm, providing reliable insulation and durability. The switch is rated for 16A at both 125V and 250V, making it suitable for various industrial and HVAC loads. Terminal options include both 90° angle and 0° angle nickel-plated brass quick connect terminals (6.3x0.8mm), offering flexible installation. The flange mounting design allows for secure attachment to surfaces.
Specifications
- Switch Type: Close on rise (normally open), automatic reset
- Set Temperature: 40°C ±3°C
- Reset Temperature: 25°C ±5°C
- Maximum Off Temperature: 85°C
- Maximum On Temperature: 100°C
- Contact Rating: 16A at 125V, 16A at 250V
- Housing: Phenolic, 12mm height
- Terminals: Nickel-plated brass, 6.3x0.8mm
- Sensor Terminals: Quick connect
- Sensor Housing: Flange mount
The compact dimensions (33mm height, 22mm width, 2mm depth) and lightweight design (5g) make it easy to integrate into existing systems. Ideal for temperature controllers, industrial automation, and process control applications.
