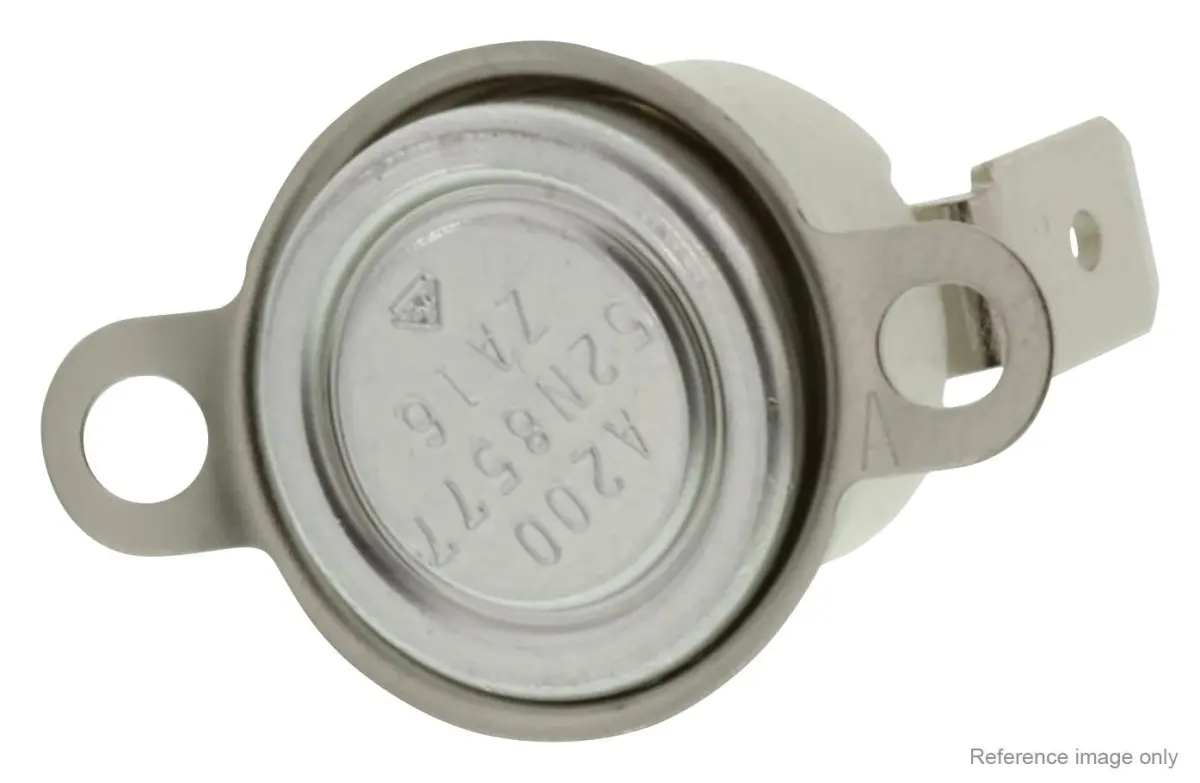

Multicomp Pro Thermal Switch, N/O, 80°C, 16A, 250V
- SKU
- C3-SW07128
- EAN
- 3562134172765
- Brand
- MULTICOMP PRO
Snap-action thermal switch, normally open, 80°C set, 65°C reset, 16A, 250V. Ideal for HVAC, industrial controls.
This item is currently out of stock...
This item is currently out of stock, but you may opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
Technical Specifications
- Temperature Controllers
- Industrial Automation
- Process Control
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Switching Temperature: 80°C
- Reset Temperature: 65°C
- Contact Operation: Normally Open (Close on Rise)
- Automatic Reset: Yes
- Housing Type: Phenolic, Height 12mm
- Housing and Shield Material: Phenolic
- Maximum Off Temperature: 85°C
- Maximum On Temperature: 100°C
- Contact Rating: 16A at 125V, 16A at 250V
- Terminal Selection: 90° angle and 0° angle, Nickel Plated Brass (6.3x0.8mm)
- Flange Mounting: Yes
- Weight: 5g
- Dimensions (H x W x D): 33mm x 22mm x 2mm
- Sensor Terminals: Quick Connect
- Sensor Housing: Flange Mount
- Product Range: MP Auto-Reset Thermostats N/O
- SVHC: No SVHC (25-Jun-2025)
