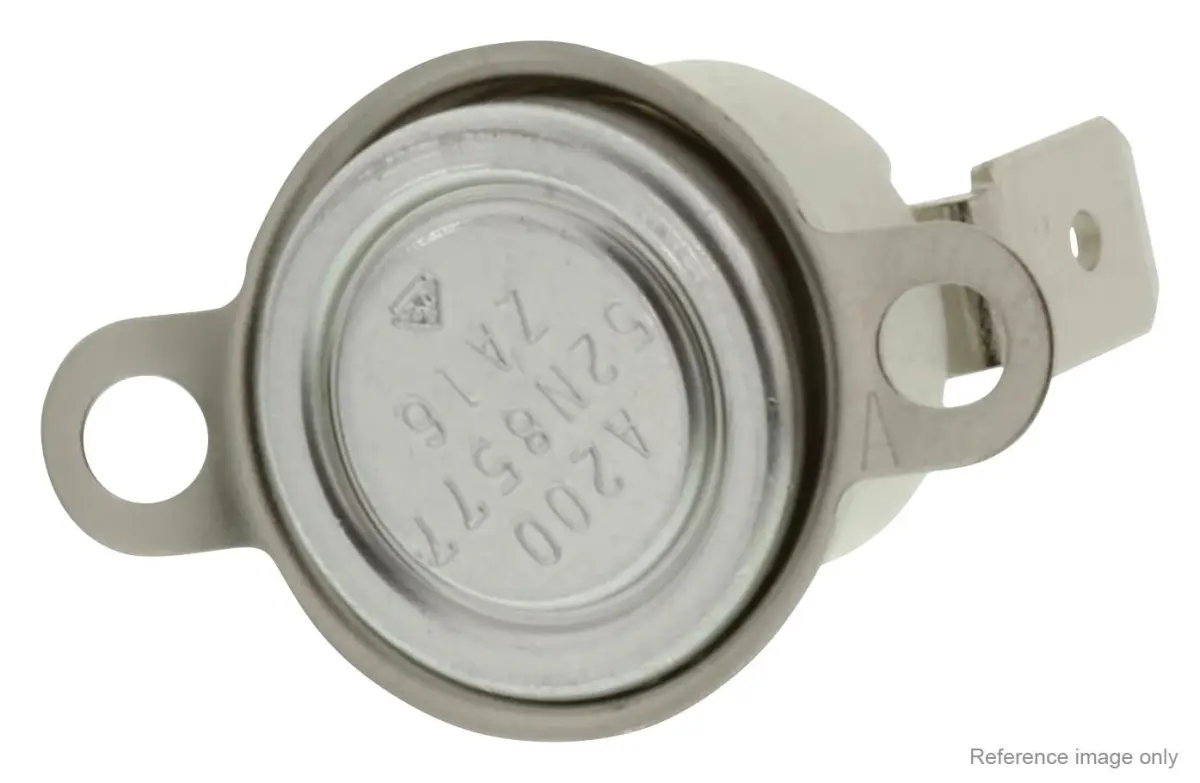

Multicomp Pro Thermal Switch, Normally Open, 70°C

The Multicomp Pro Thermal Switch is a reliable snap-action thermostat designed to regulate temperature by sensing changes and controlling heating or cooling systems. With an activation temperature of 70°C, it automatically opens or closes an electrical circuit to maintain a desired thermal environment. This switch is a critical component for safety and efficiency in a wide range of applications, ensuring consistent performance and preventing overheating.

Featuring an automatic reset function, the switch will return to its normal state once the temperature drops below the reset threshold, eliminating the need for manual intervention. Its robust phenolic housing provides excellent electrical insulation and durability, capable of withstanding high-temperature environments. The compact, flange-mount design allows for secure and straightforward installation onto various surfaces, making it a versatile choice for integration into existing systems.

Key Specifications and Features

• Switch Type: Normally Open (N/O), Close on Rise
• Set Temperature: 70°C (±3°C)
• Reset Temperature: 55°C (±5°C)
• Contact Rating: 10A at 250V AC
• Rated Current: 15/16A
• Housing Material: Phenolic
• Terminals: Nickel-plated brass, available in 0° or 90° angle quick-connect (6.3 x 0.8mm)
• Mounting: Secure flange mounting
• Maximum Temperatures: 85°C (off), 100°C (on)
• Housing Height: 12mm

This component is an essential part of any temperature control system, offering precision, reliability, and a long service life under demanding conditions.
